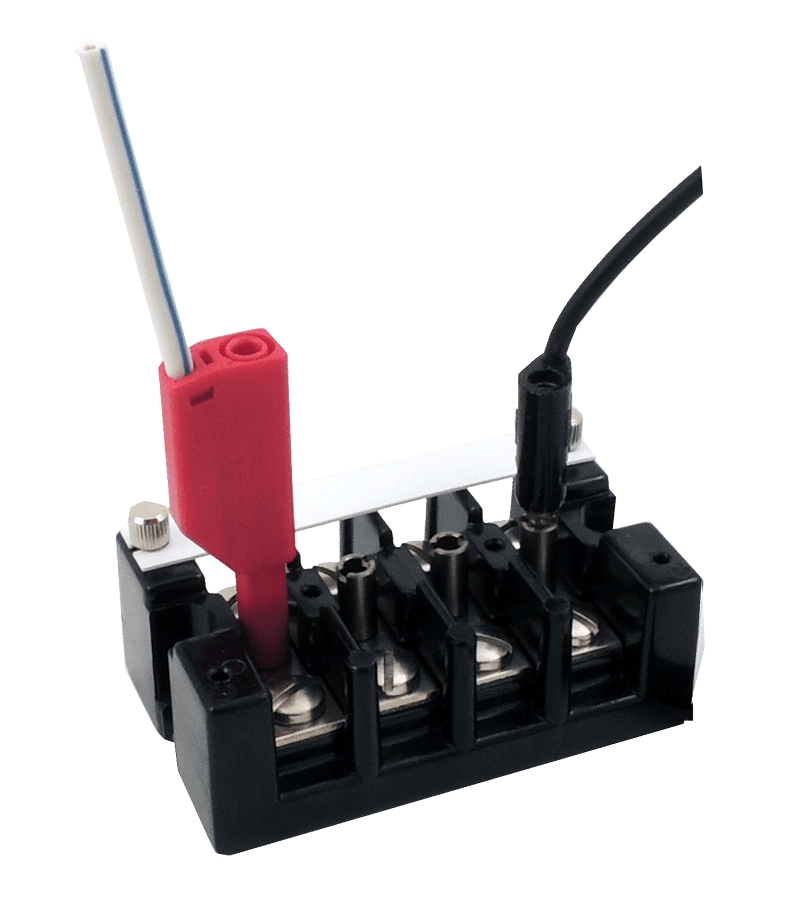

1500 Series - Barrier Terminal Blocks

1512 STD Barrier Terminal Block

1512 STD

Specifications
  • 75 amps
  • 600 volts AC/DC
  • Base, phenolic, 150°C (UL RTI)
  • Screws, #10-32 phil-slot, brass, nickel plated
  • Connector, brass, nickel plated
  • 5/8" (.625") line-to-line spacing
  • Bare wire range #10-22 AWG CU
  • Accepts lugs w/max width of .50"
Standards
  • UL recognized file no. XCFR2.E62806
  • CSA certified file no. LR19766
  • CE (Component IEC 60947-7-1)
  • RoHS compliant
HEAVY DUTY Terminal Blocks- 1500 Series (Barrier Type)
Poles (X) Dimensions Standard connector with serrations for anti-rotation Removable connector with brass insert 10-32 stud, removable connector Short circuiting bar with brass insert, 4 shorting pins per block Standard connector with hinge cover Multiple Circuit Jumper Covers
A B Clear White
Datasheet Datasheet Datasheet Datasheet Datasheet
2 2.00 1.62 1502STD 1502DJ 1502ST 1502SC 1502H 1502MCJ CC1502 CW1502
4 3.25 2.88 1504STD 1504DJ 1504ST 1504SC 1504H 1504MCJ CC1504 CW1504
6 4.50 4.12 1506STD 1506DJ 1506ST 1506SC 1506H 1506MCJ CC1506 CW1506
8 5.75 5.38 1508STD 1508DJ 1508ST 1508SC 1508H 1508MCJ CC1508 CW1508
12 8.25 7.88 1512STD 1512DJ 1512ST 1512SC 1512H 1512MCJ CC1512 CW1512
