37TB-B Series Military Terminal Blocks

37TB04B Military Terminal Block

37TB04B

Specifications
  • A Kulka® Brand
  • 300 volts AC/DC
  • Base, valox 420-SEO, grey color, 130°C
  • Closed back design
  • Screws, brass nickel plate, 6-32 binder head, slotted
  • Terminals, brass nickel plate
  • 3/8" centers
  • Flammability rating 94 V-O
  • Wire size #16
  • 15 amps
  • Parts are supplied with end plates
  • RoHS compliant

Product Datasheet

Hardware Options

Lug Type (Commercial):
3/4 ST 600 = Half Solder - Reference
ST600 - Full Solder - Reference

Feed-Thru Hardware Options

Long Feed-Thru Solder
40TB B Only

Accessories (Jumper Commercial Grade)

Marking Strips = MSA, MSB, MSC - Reference
Jumper = J600, 600RJ, 600RJ(S) - Reference

Service Options

Consult Customer Service

Military Class A-A-59125 - 37TB-B Series

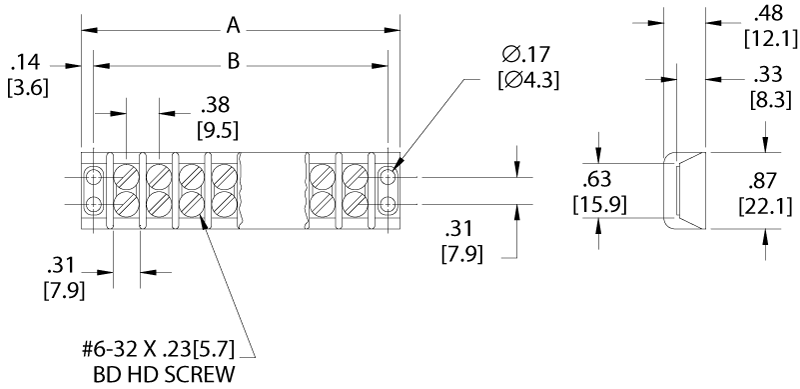

Catalog # # of Poles Dimensions
A B
37TB02B 2 1.41 1.12
37TB03B 3 1.78 1.50
37TB04B 4 2.16 1.88
37TB05B 5 2.53 2.25
37TB06B 6 2.91 2.62
37TB07B 7 3.28 3.00
37TB08B 8 3.66 3.38
37TB09B 9 4.03 3.75
37TB10B 10 4.41 4.12
37TB11B 11 4.78 4.50
37TB12B 12 5.16 4.88
37TB13B 13 5.53 5.25
37TB14B 14 5.91 5.62
37TB15B 15 6.28 6.00
37TB16B 16 6.66 6.38
37TB17B 17 7.03 6.75
37TB18B 18 7.41 7.12
37TB19B 19 7.78 7.50
37TB20B 20 8.16 7.88

37TB - Military Class Terminal Blocks

37TB06F Military Terminal Block

37TB06F

Material
  • Plastic: grade F temperature rating 155°C per MIL-M-14
  • Screws: Brass per QQ-W-321, nickel plated per QQ-N-290
  • Terminal Plates: Brass per QQ-B-613, nickel plated per QQ-N-290
Electrical Rating
  • Rated voltage (maximum): 300 volts
  • Current rating: 15 amps
  • D.W.V.: 3000 volts RMS

Product Datasheet

Military Class - 37TB-F Series - A-A-59125/1 - MIL-T-55164/1
Catalog # # of Poles Dimensions
A B
37TB02F 2 1.360-1.453 1.109-1.156
37TB03F 3 1.735-1.828 1.484-1.531
37TB04F 4 2.110-2.203 1.859-1.906
37TB05F 5 2.500-2.593 2.234-2.281
37TB06F 6 2.876-2.969 2.609-2.656
37TB07F 7 3.250-3.343 2.984-3.031
37TB08F 8 3.636-3.719 3.359-3.406
37TB09F 9 4.000-4.093 3.734-3.781
37TB10F 10 4.376-4.469 4.109-4.156
37TB11F 11 4.750-4.843 4.484-4.531
37TB12F 12 5.126-5.219 4.859-4.906
37TB13F 13 5.500-5.593 5.234-5.281
37TB14F 14 5.876-5.969 5.609-5.656
37TB15F 15 6.250-6.365 5.969-6.047
37TB16F 16 6.626-6.735 6.344-6.422
37TB17F 17 7.000-7.109 6.719-6.797
37TB18F 18 7.376-7.485 7.094-7.172
37TB19F 19 7.752-7.812 7.469-7.547
37TB20F 20 8.127-8.187 7.844-7.922
37TB21F 21 8.502-8.562 8.219-8.297
37TB22F 22 8.877-8.937 8.594-8.672
37TB23F 23 9.252-9.312 8.969-9.047
37TB24F 24 9.627-9.687 9.344-9.422
37TB25F 25 10.002-10.062 9.719-9.797
37TB26F 26 10.377-10.437 10.094-10.172
37TB27F 27 10.752-10.812 10.469-10.547
37TB28F 28 11.127-11.187 10.844-10.922
37TB29F 29 11.502-11.562 11.219-11.297
37TB30F 30 11.877-11.937 11.594-11.672
37TB31F 31 12.252-12.312 11.969-12.047
