599/799 GP Series - Single Row Terminal Blocks

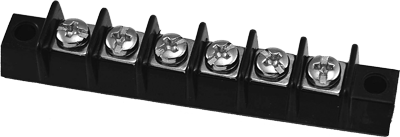

599 GP 06 PSB Double Row Terminal Block

599 GP 06 PSB

Specifications
  • A Kulka® Brand
  • 15 amps
  • 300 Volts AC/DC, Class B
  • 150 Volts AC/DC, Class C
  • 799 series (riveted construction) 150 Volts AC/DC, Class C
  • Base, phenolic, 150°C (UL RTI)
  • JJ (GDI-30F) material available
  • Screws, steel, #5-40 phil-slot
  • Terminals, plated brass
  • Open back design (Insulator strip required for voltage rating - Reference)
  • 1-30 poles at 3/8" centers
  • Accepts lugs w/max width of .30"
  • Bare wire range #16-#22 AWG
Standards
  • UL recognized file no. XCFR2.E47811
  • CSA certified file no. LR19766
  • CE Compliant (IEC 60947-7-1)
  • RoHS compliant
Datasheets

599 GP PSB

599 GP Mod

Single Row Terminal Blocks - 599 / 799 GP Series
Catalog # # of Poles Dimensions
A B
599 GP 01 PSB 1 1.03 0.75
599 GP 02 PSB 2 1.41 1.12
599 GP 03 PSB 3 1.78 1.50
599 GP 04 PSB 4 2.16 1.88
599 GP 05 PSB 5 2.53 2.25
599 GP 06 PSB 6 2.91 2.63
599 GP 07 PSB 7 3.28 3.00
599 GP 08 PSB 8 3.66 3.38
599 GP 09 PSB 9 4.03 3.75
599 GP 10 PSB 10 4.41 4.13
599 GP 11 PSB 11 4.78 4.50
599 GP 12 PSB 12 5.16 4.88
599 GP 13 PSB 13 5.53 5.25
599 GP 14 PSB 14 5.91 5.63
599 GP 15 PSB 15 6.28 6.00
599 GP 16 PSB 16 6.66 6.38
599 GP 17 PSB 17 7.03 6.75
599 GP 18 PSB 18 7.41 7.13
599 GP 19 PSB 19 7.78 7.50
599 GP 20 PSB 20 8.16 7.88
599 GP 21 PSB 21 8.53 8.25
599 GP 22 PSB 22 8.91 8.63
599 GP 23 PSB 23 9.28 9.00
599 GP 24 PSB 24 9.66 9.38
599 GP 25 PSB 25 10.03 9.75
599 GP 26 PSB 26 10.41 10.13
599 GP 27 PSB 27 10.78 10.50
599 GP 28 PSB 28 11.16 10.88
599 GP 29 PSB 29 11.53 11.25
599 GP 30 PSB 30 11.91 11.63

mm = dim X 25.4

Hardware Options

(Hardware options may affect ratings - Consult Customer Service)

Catalog # Product Description Reference Sheet

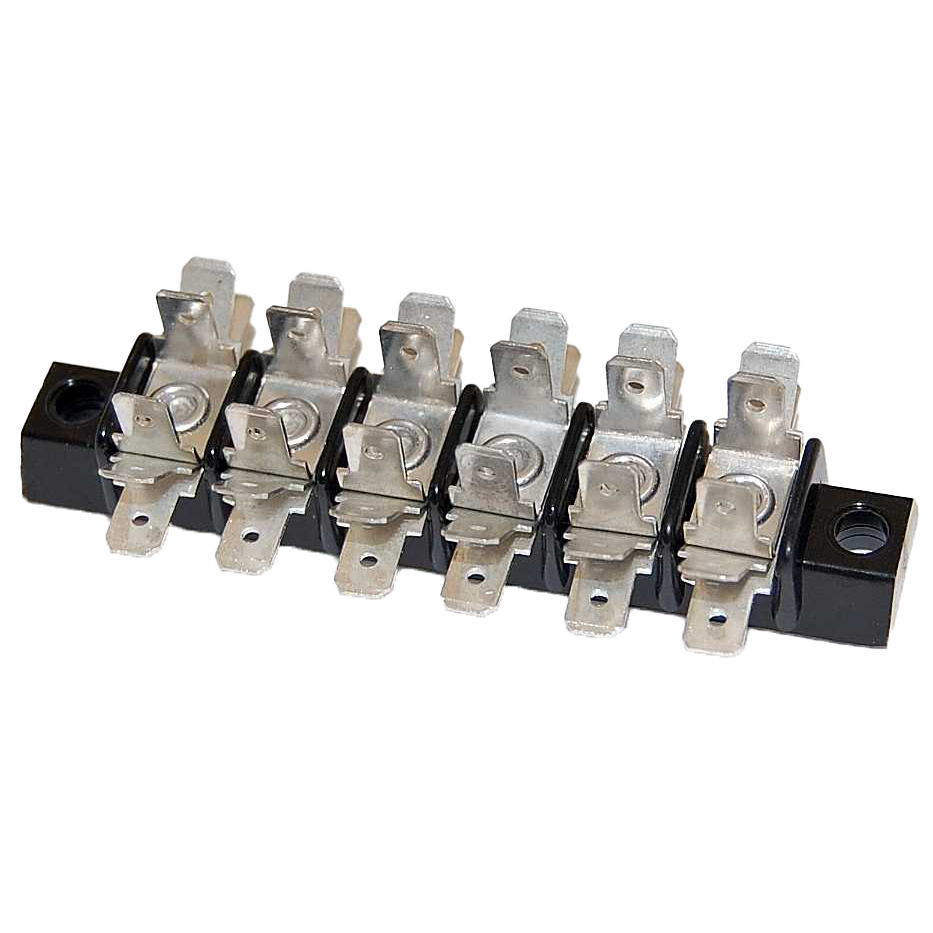

KT28 Full Quick Connect (0 degree Flat) Reference
KT29 Full Quick Connect (45 degree Bend)
KT30 Full Quick Connect (90 degree Bend)
KT34 Half Quick Connect (0 degree Flat)
KT35 Half Quick Connect (45 degree Flat)
KT36 Half Quick Connect (90 degree Flat)
3/4 ST Half Solder Reference
Z Lug Over the Side (.312) Consult Customer Service
J 600 Line-to-Line Jumper Reference
600RJ(S) Multiple Position Jumper
2002 Stud Reference
2004 Feed Thru Solder
2020 Solder Pin
2021 Solder Pin (Slotted Screw)
Marking Strips & Insulator Strips - Sub-Mounted Reference

Quick Connects: .020" x .187"
