Power Blocks - High Voltage (1500V)

Shown left to right: HVPB108, HVPB203, HVPB109

Electrical
  • 350 - 1500 amps
  • 1500 volts AC/DC (UL)
  • Provides feeder circuit terminal spacing at 600V
  • Flexible stranded wire compliant
  • Multiple wire rating - refer to data sheets for details
Mechanical
  • Base, thermoplastic
  • Insulator temp-rating: 110°C (230°F) - UL RTI
  • Flammability, UL 94 V-0
  • Mounting: panel mountable
  • Modular construction for multi-pole configurations
Standards
  • See datasheets for product specific approvals listed
  • UL recognized file no. XCFR2.E62806 (UL 1059)
  • cUR recognized file no. XCFR8.E62806 (UL 1059)
  • RoHS compliant
  • Power Block Covers

HIGH VOLTAGE Power Blocks (HVPB)
Amps Cat # Conn. Temp Rating Material Line Side Load Side Datasheets
Insulator Connector Wire Range
AWG / kcmil
Connector
Openings / Pole
Wire Range
AWG /kcmil
Connector
Openings / Pole
350 HVPB105 90°C Plastic AL Stud, M10 1 #10 - #14 (a) 24 Datasheet
420 HVPB108 75°C Plastic AL 600-#2 1 #4 - #14 12 Datasheet
420 HVPB109 75°C Plastic AL 600-#2 1 600 - #2 1 Datasheet
430 HVPB101 90°C Plastic AL Stud, M10 1 #6 - #14 (b) 12 Datasheet
430 HVPB103 90°C Plastic AL Stud, M10 1 #4 - #14 (c) 8 Datasheet
430 HVPB107 90°C Plastic CU Stud, M10 1 Stud, M10 1 Datasheet
430 HVPB208 90°C Plastic CU Stud, 1/2-13 x 1.44" 1 Stud 1/2-13 x 1.44" 1 Datasheet
750 HVPB112 90°C Plastic CU Stud, 3/8 1 Stud, 3/8 1 Datasheet
750 HVPB114 90°C Plastic CU Stud, 1/2 1 Stud, 1/2 1 Datasheet
760 HVPB210 75°C Plastic AL 500 - #4 2 #2 - #14 12 Datasheet
760 HVPB211 75°C Plastic AL 500 - #4 2 2/0 - #14 8 Datasheet
860 HVPB205 90°C Plastic AL Stud, M10 1 #4 - #14 (c) 16 Datasheet
860 HVPB207 90°C Plastic AL Stud, M10 2 #4 - #14 (c) 16 Datasheet
860 HVPB201 90°C Plastic AL Stud, M10 1 #6 - #14 (b) 24 Datasheet
860 HVPB203 90°C Plastic AL Stud, M10 2 #6 - #14 (b) 24 Datasheet
950 HVPB602 90°C Plastic AL 600 - #2 2 600 - #2 2 Datasheet
1500 HVPB212 90°C Plastic CU Stud, 3/8 2 Stud, 3/8 2 Datasheet

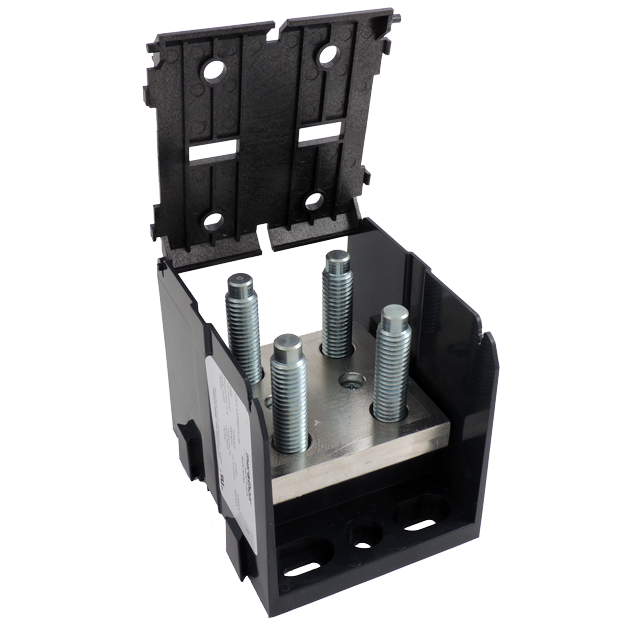

1500 HVPB214 90°C Plastic CU Stud, 1/2 2 Stud, 1/2 2 Datasheet

(a) suitable for #8 AWG, limited to 40A per wire, copper only

(b) suitable for #4 AWG, limited to 75A per wire, copper only

(c) suitable for #2 AWG, limited to 95A per wire, copper; 75A per wire, aluminum
