ST722, ST715, and ST723 Series - Studded Power Feed Thru Terminal Blocks

ST722B2502

ST722 Series

Electrical
  • 300 volts AC/DC (UL)
  • 115 - 175 amps
  • Wire range is determined by the compression lugs used. Typically accepts 2/0 - #8 AWG lug sizes.
  • Short circuit current rating (SCCR) of 10K
  • Factory and field wiring
General Specifications
  • Base - black thermoplastic
  • Studs - brass, nickel-plated
  • Insulator temp-rating: 125°C (257°F) - UL RTI
  • Flammability, UL 94 V-0
  • Mounting: panel mountable (back or end)
  • .73" centers (pole-to-pole)
  • Accomodates two hole compression lugs with .625" centers and a max width of .64"
  • Application torque: 35 lbf-in for #10 - 32 and M5, 50 lbf-in for #10 - 32 and M5, 50 lbf-in for 1/4" - 20 and M6
Standards
  • See datasheets for product specific approvals listed
  • UL recognized file no. XCFR2.E62806 (UL 1059)
  • CSA ceritfied file no. LR19766 (CSA C22-2 No. 158)
  • CE (component IEC 60947-7-1)
  • RoHS compliant

Ordering Code:

Series Mounting Styles Thread Size Number of Poles Terminal Options Hardware Options Datasheets
ST722 X XX XX
B = Back Mount
E = End Mount
25 = 1/4 - 20
19 = #10 - 32
M6 = M6
M5 = M5
01 = 1 Pole
02 = 2 Pole
03 = 3 Pole
04 = 4 Pole
05 = 5 Pole
06 = 6 Pole
Blank = Studs Top & Bot.
T1 = Tap Top, Stud Bot.
T1S = Stud Top, Tap Bot.
T2 = Tap Top & Bot.
Blank - No hardware
UH - All nuts shipped bulk
AH - All nuts assembled
DL - Assembled barrier side, remainder shipped bulk

ST722 Series - Studded Feed Thru

Series Amp
Rating
Mounting
Style
Poles
Available
Terminal Description Terminal Illustration
(2 pole shown)
Agency Compliance
ST722Bxxxx 175 Back 2 to 6 Studs Top & Bottom UL Recognized
CSA Certified
CE Compliant
ST722BxxxxT1 115 Back 2 to 6 Tap Top, Stud Bottom UL Recognized
cUL Recognized
CE Compliant
ST722BxxxxT1S 115 Back 2 to 6 Stud Top, Tap Bottom UL Recognized
cUL Recognized
CE Compliant
ST722BxxxxT2 115 Back 2 to 6 Tap Top & Bottom UL Recognized
cUL Recognized
CE Compliant
ST722Exxxx 175 End 1 to 6 Studs Top & Bottom UL Recognized
CSA Certified
CE Compliant
ST722ExxxxT1 115 End 1 to 6 Tap Top, Stud Bottom UL Recognized
cUL Recognized
CE Compliant
ST722ExxxxT1S 115 End 1 to 6 Stud Top, Tap Bottom UL Recognized
cUL Recognized
CE Compliant
ST722ExxxxT2 115 End 1 to 6 Tap Top & Bottom UL Recognized
cUL Recognized
CE Compliant

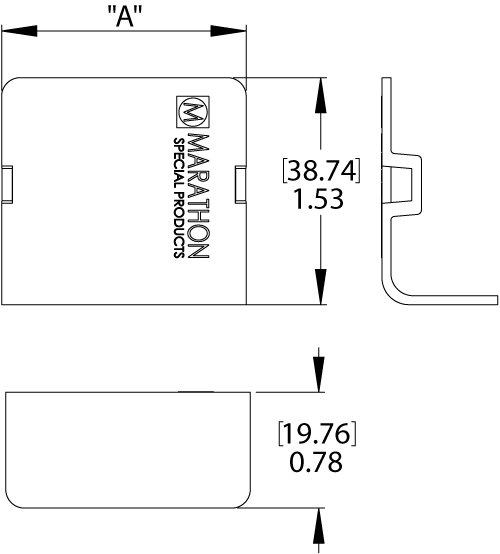

Cover Available

  • Covers fit all styles available
  • Base - Thermoplastic
  • Flammability UL 94 V-0
Catalog
Number
Poles Dimension A
C72201 1 .91
C72202 2 1.64
C72203 3 2.37
C72204 4 3.10
C72205 5 3.83
C72206 6 4.56

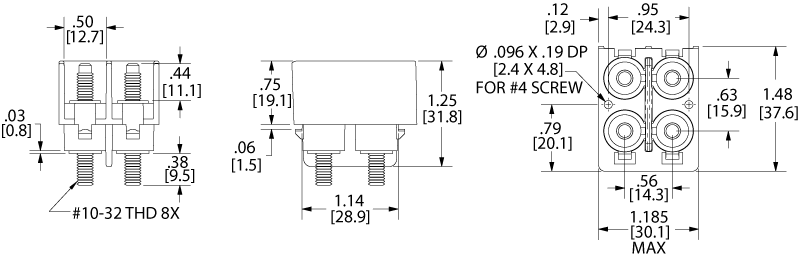

ST715 Series

Electrical
  • 300 volts AC/DC (UL 1059 Class B and C)
  • 80 amps
  • Wire range is determined by the compression lugs used. Typically accepts #6 - #14 lug sizes
Standards
  • Ul recognized file no. XCFR2.E62806
  • cURus recognized file no. XCFR8.E62806
  • CE (component IEC 60947-7-1)
  • RoHS compliant
General Specifications
  • Base - black thermoplastic
  • #10 - #32 studs - brass, nickel-plated
  • Insulator temp-rating: 125°C (257°F) - UL RTI
  • Flammability, UL 94 V-0
  • Mounting: panel mountable (back or slide options)
  • 2 pole at .56" center (pole-to-pole)
  • Application torque: 20 lbf-in
  • Accomodates two hole compression lugs on .625" centers and a max width of .50"
ST715S1902

ST715S1902

Ordering Code
Series Hardware Options
ST715S1902
  • Blank - No hardware
  • UH - All nuts shipped bulk
  • AH- All nuts assembled
  • DL - Assembled barrier side, remainder shipped bulk

ST723 Series

Electrical
  • 600 volts AC/DC
  • 380 amps
  • Short circuit current rating (SCCR) of 10K
  • Wire range is determined by the compression lugs used. Typically accepts 500 kcmil - 2/0 AWG lug sizes
Standards
  • Ul recognized file no. XCFR2.E62806
  • cURus recognized file no. XCFR8.E62806
  • RoHS compliant
General Specifications
  • Base - black thermoplastic
  • Studs - brass, nickel-plated
  • Insulator temp-rating: 125°C (257°F) - UL RTI
  • Flammability, UL 94 V-0
  • Mounting: panel mountable (back mount only) torque to 15 lbf-in max
  • 1.56" centers (pole-to-pole)
  • Application torque: 192 lbf-in
  • Accomodates two hole compression lugs with 1.00" centers and a max width of 1.40"
ST723B3802

ST723B3802

Ordering Code
Series Number
of Poles
Hardware Options
ST723B38 XX
01 = 1 Pole
02 = 2 Pole
  • Blank - No hardware
  • UH - All nuts shipped bulk
  • AH- All nuts assembled
  • DL - Assembled barrier side, remainder shipped bulk
