Box Distribution Connector Fuse Holders

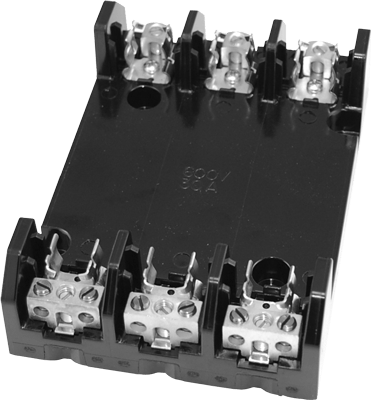

6F30A3BDD

6F30A3BDD

Specifications

Available in 30 & 60 amps @ 250/600 volts
Available on Class H, R and J fuse holders
Connectors - high-conductive aluminum, tin-plated
Reinforcing member available, standard on Class R
UL recognized file no. IZLT2.E35113
CSA certified file no. LR21455
RoHS compliant

Class H and R Fuse Holders

Amps	Volts	Catalog # (x = # of poles)	Line Wire Range	Load Wire Range
60	250	F60AxBD	(1) #2 - #10 AWG	(1) #2 - #10 AWG (1) #6 - #14 AWG
		R60AxBD
		F60AxBD-D
		R60AxBD-D
30	600	6F30AxBD-D	(1) #6 - #14 AWG	(1) #6 - #14 AWG (2) #10 - #18 AWG
30		6R30AxBD-D	(1) #6 - #14 AWG	(1) #6 - #14 AWG (2) #10 - #18 AWG
60		6F60AxBD	(1) #2 - #10 AWG	(1) #2 - #10 AWG (1) #6 - #14 AWG
		6R60AxBD		(1) #2 - #10 AWG (1) #6 - #14 AWG
		6F60AxBD-D		(1) #2 - #10 AWG (2) #6 - #14 AWG
		6R60AxBD-D		(1) #2 - #10 AWG (2) #6 - #14 AWG

Class R - No Agency Approval

Class J Fuse Holders

Amps	Volts	Catalog # (x = # of poles)	Line Wire Range	Load Wire Range
60	600	6J60AxBD	(1) #2 - #10 AWG	(1) #2 - #10 AWG (1) #6 - #14 AWG
60	600	6J60AxBD-D	(1) #2 - #10 AWG	(1) #2 - #10 AWG (2) #6 - #14 AWG

Class J - No Agency Approval
