Bulk Fastening Power Blocks
BFPB-50-2-2
Electrical
1605 amps
1000 volts AC/DC (cULus)
Multiple wire rating - refer to data sheets for details
Provides feeder circuit terminal spacing
Mechanical
Insulator - thermoplastic: 125°C (257°F) - UL RTI
Flammability, UL 94 V-0
Mounting: panel mountable
Features / Benefits
Modular construction to accommodate numerous terminal options
Available for 2 to 6 stud terminal positions
Accommodates power distribution options for listed lugs sized up to 1000kcmil
First power terminal block to have a high SCCR rating (35k) with no over current protection device
Reliably terminates flexible stranded classes of wire with crimp lugs
Suitable to terminate and distribute power with flexible bus bar
Standards
UL recognized file no. XCFR2.E62806 (UL 1059)
cUR recognized file no. XCFR8.E62806 (UL 1059)
RoHS compliant (all)
Datasheet
Bulk Fastening Power Block
Catalog Number
Stud Positions
Stud Size

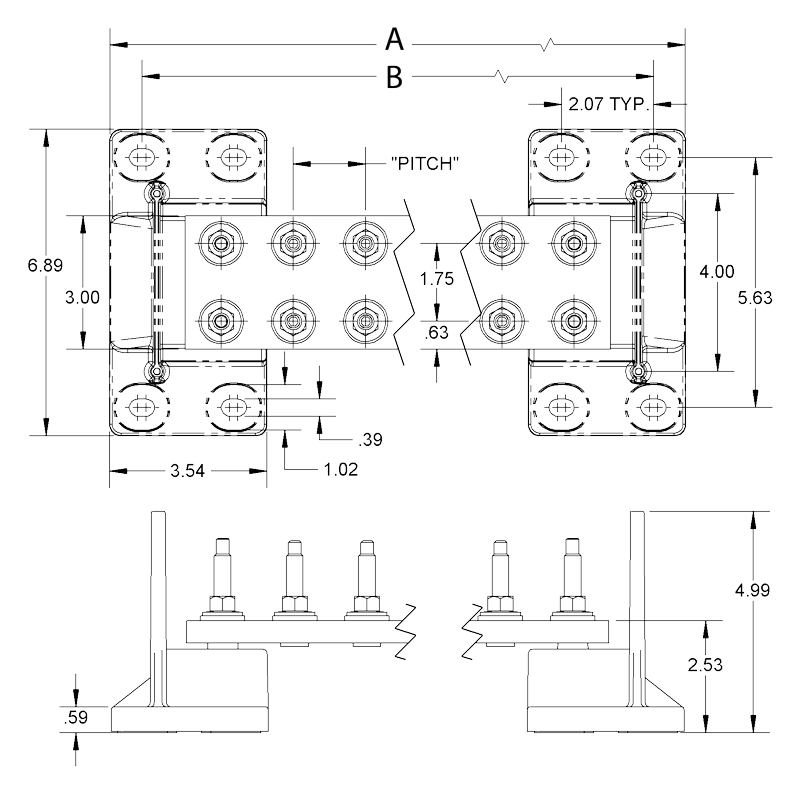

Dimensions
Cover Part Number
Pitch
A
B
BFPB-50-2-2
2
1/2
2.125
7.14
5.69
CC-BFPB-2-2
BFPB-50-2-3
3
1/2
2.125
9.27
7.82
CC-BFPB-2-3
BFPB-50-2-4
4
1/2
2.125
11.39
9.94
CC-BFPB-2-4
BFPB-50-2-5
5
1/2
2.125
13.52
12.07
CC-BFPB-2-5
BFPB-50-2-6
6
1/2
2.125
15.64
14.19
CC-BFPB-2-6
BFPB-37-1-3
3
3/8
1.625
8.27
6.82
CC-BFPB-1-3
BFPB-37-1-4
4
3/8
1.625
9.89
8.44
CC-BFPB-1-4
BFPB-37-1-5
5
3/8
1.625
11.52
10.07
CC-BFPB-1-5
BFPB-37-1-6
6
3/8
1.625
13.14
11.69
CC-BFPB-1-6
