Stud Power Blocks are an electrical component designed to facilitate secure and organized connections in power distribution systems. They feature threaded studs or terminals that allow for easy attachment of electrical wires or cables.
Use Selector ToolWith an extensive amperage range spanning from 115 to 1680 amps, Stud Power Blocks offer versatility to cater to various power distribution needs across different applications and industries.
Designed to reliably operate within a voltage range of 600 to 1500 volts AC/DC (UL recognized), these power blocks ensure stable performance and secure connections for both lower and higher voltage applications.
Particularly well-suited for flexible stranded wires, Stud Power Blocks excel in providing secure and dependable terminations, essential for maintaining consistent power flow and reducing the risk of disruptions.
Backed by UL recognition (file no. XCFR2.E62806) and CSA certification (file no. LR19766), Stud Power Blocks offer an assurance of quality, compliance, and adherence to industry standards, instilling confidence in their reliability and performance.
Compliant with RoHS regulations, these power blocks prioritize safety and environmental responsibility, ensuring the use of materials that align with modern sustainability practices.
Due to their sturdy design, stud power blocks are often suitable for panel mounting or attaching directly to surfaces.
| Amps | Catalog # | Poles (X) | Voltage | Conn. | LINE SIDE | LOAD SIDE | Covers Available | Datasheets | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wire Range AWG / kcmil -or- Stud Size |
Connector Openings / Pole |
Wire Range AWG / kcmil -or- Stud Size |
Connector Openings / Pole |
||||||||
| 115 | 141x203 | 1/2/3/4 | 600 | AL | #2 - #14 | 1
|
#10-32 X .60 | 1
|
Yes | Datasheet | Check Stock |
| 175 | 132x574 | 0/1/2/3 | 600 | AL | 2/0 - #14 | 1
|
1/4-20 x .50 | 1
|
Yes | Datasheet | Check Stock |
| 132x474 | 0/1/2/3 | 600 | AL | 2/0 - #14 | 1
|
M6 X 13 | 1
|
Yes | Datasheet | Check Stock | |
| 200 | 132x122 | 0/1/2/3 | 600 | CU | 1/4-20 X .56 | 1
|
1/4-20 X .56 | 1
|
Yes | Datasheet | Check Stock |
| 132x422 | 0/1/2/3 | 600 | CU | M6 X 15 | 1
|
M6 X 15 | 1
|
Yes | Datasheet | Check Stock | |
| 310 | 133x564 | 1/2/3 | 600 | CU | M10 x 30 | 1
|
M10 x 30 | 1
|
Yes | Datasheet | Check Stock |
| 133x563 | 1/2/3 | 600 | CU | 3/8-16 x 1.18 | 1
|
3/8-16 x 1.18 | 1
|
Yes | Datasheet | Check Stock | |
| 133x559 | 1/2/3 | 600 | AL | 350 - #6 | 1
|
3/8-16 x 1.25 | 1
|
Yes | Datasheet | Check Stock | |
| 133x558 | 1/2/3 | 600 | AL | 350 - #6 | 1
|
M10 x 30 | 1
|
Yes | Datasheet | Check Stock | |
| 350 | HVPB105 | 1 | 1500 | AL | Stud, M10 | 1 |
#10 - #14 (a) | 24
|
Yes | Datasheet | Check Stock |
| 360 | 145x573 | 1/2/3 | 600 | CU | 3/8-16 x 1.44 | 1
|
3/8-16 x 1.44 | 2
|
Yes | Datasheet | Check Stock |
| 145x583 | 1/2/3 | 600 | CU | 3/8-16 x 1.44 | 1
|
1/4-20 x 1.44 | 2
|
Yes | Datasheet | Check Stock | |
| 410 | 145x606 | 1/2/3 | 600 | CU | 1/2-13 x 1.44 | 1
|
1/2-13 x 1.44 | 1
|
Yes | Datasheet | Check Stock |
| 430 | HVPB101 | 1 | 600 | AL | Stud, M10 | 1 |
#6 - #14 (b) | 12
|
Yes | Datasheet | Check Stock |
| HVPB103 | 1 | 1500 | AL | Stud, M10 | 1 |
#4 - #14 (c) | 8
|
Yes | Datasheet | Check Stock | |
| HVPB107 | 1 | 1500 | CU | Stud, M10 | 1 |
Stud, M10 | 1 |
Yes | Datasheet | Check Stock | |
| HVPB208 | 1 | 1500 | CU | Stud, 1/2 - 13 x 1.44" | 1 |
Stud, 1/2 - 13 x 1.44" | 1 |
Yes | Datasheet | Check Stock | |
| 475 | 145x613 | 1/2/3 | 600 | CU | 3/8-16 x 1.44 | 2
|
3/8-16 x 1.44 | 1
|
Yes | Datasheet | Check Stock |
| 510 | 133x272 | 1/2/3 | 600 | AL | 3/8-16 x 1.19 (a) | 1
|
4 - #14 | 12
|
Yes | Datasheet | Check Stock |

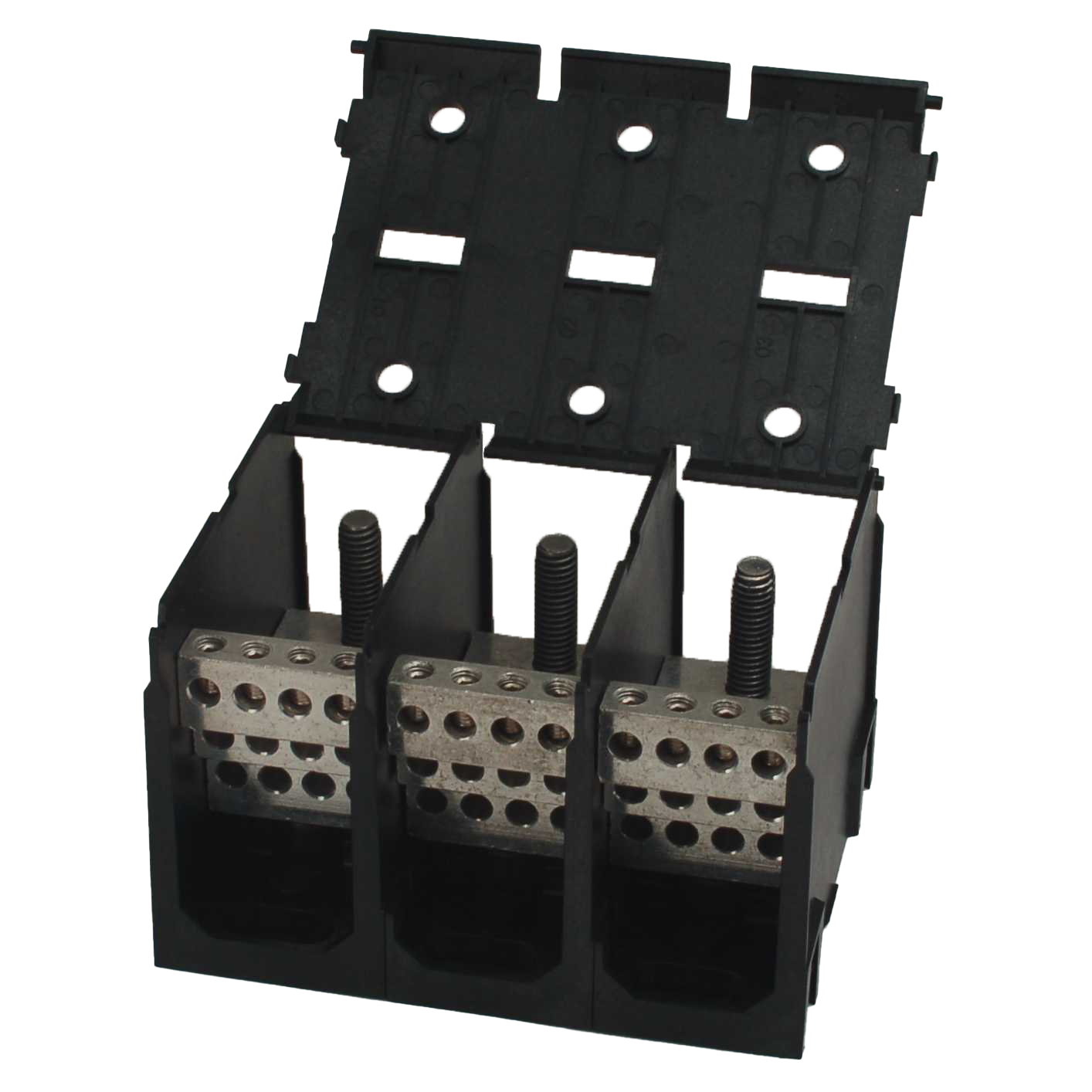

| 133x280 | 1/2/3 | 600 | AL | 3/8-16 x 1.19 (a) | 1
|
#2 - #14 | 8
|
Yes | Datasheet | Check Stock | |
| 133x270 | 1/2/3 | 600 | AL | 3/8-16 x 1.19 (a) | 1
|
2/0 - #14 | 4
|
Yes | Datasheet | Check Stock | |
| 750 | HVPB112 | 1 | 1500 | CU | Stud, 3/8 | 1 |
Stud, 3/8 | 1 |
Yes | Datasheet | Check Stock |
| HVPB114 | 1 | 1500 | CU | Stud, 1/2 | 1 |
Stud, 1/2 | 1 |
Yes | Datasheet | Check Stock | |
| 760 | 145x282 | 1/2/3 | 600 | AL | 3/8-16 x 1.00 | 2
|
2/0 - #14 | 8
|
Yes | Datasheet | Check Stock |
| 145x599 | 1/2/3 | 600 | AL | 500 - #4 | 2
|
3/8-16 x 1.31 | 2
|
Yes | Datasheet | Check Stock | |
| 145x610 | 1/2/3 | 600 | AL | 500 - #4 | 2
|
1/2-13 x 1.31 | 1
|
Yes | Datasheet | Check Stock | |
| 860 | HVPB205 | 1 | 1500 | AL | Stud, M10 | 1 |
#4 - #14 (c) | 16
|
Yes | Datasheet | Check Stock |
| HVPB207 | 1 | 1500 | AL | Stud, M10 | 2 |
#4 - #14 (c) | 16
|
Yes | Datasheet | Check Stock | |
| HVPB201 | 1 | 1500 | AL | Stud, M10 | 1 |
#6 - #14 (b) | 24
|
Yes | Datasheet | Check Stock | |
| HVPB203 | 1 | 1500 | AL | Stud, M10 | 2 |
#6 - #14 (b) | 24
|
Yes | Datasheet | Check Stock | |
| 1500 | HVPB212 | 1 | 1500 | CU | Stud, 3/8 | 2 |
Stud, 3/8 | 2 |
Yes | Datasheet | Check Stock |
| HVPB214 | 1 | 1500 | AL | Stud 1/2 | 2 |
Stud 1/2 | 2 |
Yes | Datasheet | Check Stock | |
| 1605 | BFPB-37-1-3 | 1 | 1000 | CU | 3/8-16 x 1.80 | 3 |
3/8-16 x 1.80 | 3 |
Yes | Datasheet | Check Stock |
| BFPB-37-1-4 | 1 | 600 | CU | 3/8-16 x 1.80 | 4 |
3/8-16 x 1.80 | 4 |
Yes | Datasheet | Check Stock | |
| BFPB-37-1-5 | 1 | 600 | CU | 3/8-16 x 1.80 | 5 |
3/8-16 x 1.80 | 5 |
Yes | Datasheet | Check Stock | |
| BFPB-37-1-6 | 1 | 600 | CU | 3/8-16 x 1.80 | 6 |
3/8-16 x 1.80 | 6 |
Yes | Datasheet | Check Stock | |
| BFPB-50-2-2 | 1 | 600 | CU | 1/2-13 x 2.00 | 2 |
1/2-13 x 2.00 | 2 |
Yes | Datasheet | Check Stock | |
| BFPB-50-2-3 | 1 | 600 | CU | 1/2-13 x 2.00 | 3 |
1/2-13 x 2.00 | 3 |
Yes | Datasheet | Check Stock | |
| BFPB-50-2-4 | 1 | 600 | CU | 1/2-13 x 2.00 | 4 |
1/2-13 x 2.00 | 4 |
Yes | Datasheet | Check Stock | |
| BFPB-50-2-5 | 1 | 600 | CU | 1/2-13 x 2.00 | 5 |
1/2-13 x 2.00 | 5 |
Yes | Datasheet | Check Stock | |
| BFPB-50-2-6 | 1 | 600 | CU | 1/2-13 x 2.00 | 6 |
1/2-13 x 2.00 | 6 |
Yes | Datasheet | Check Stock | |
| 1680 | 145x615 | 1/2/3 | 600 | AL | 600 - #4 | 4
|
1/2-13 x 1.56 | 1
|
Yes | Datasheet not available | Check Stock |
(a) suitable for #8 AWG, limited to 40A per wire, copper only
(b) suitable for #4 AWG, limited to 75A per wire, copper only
(c) suitable for #2 AWG, limited to 95A per wire, copper; 75A per wire, aluminum
