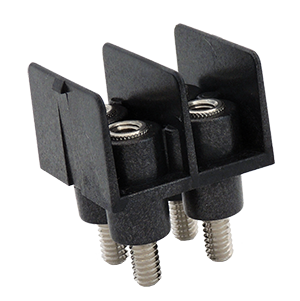

ST722 Feed Thru Stud Terminal Blocks

General Information

Marathon Special Products Feed Thru Stud Terminal Blocks allow for easy daisy-chaining or linking of multiple terminal blocks because of the "feed thru" aspect of the part that allows the electrical connection to pass through the block from one side to the other. This streamlines the wiring process in complex electrical systems.

Contact Us

Electrical

• Designed for delta and wye wiring configurations
• 35 to 560 amps
• 250 - 1100 volts
• For use with listed crimp lugs

General Specifications

• Base, thermoset polyester, 130°C (UL RTI)
• Studs and hardware, steel, plated
• Link, copper, nickel plated
• All blocks include links and hardware assembled
• Insulator temp-rating: 130°C (266°F) - UL RTI
• Flammability, UL 94 V-0

Standards

• UL recognized file no. XCFR2.E62806
• cUR recognized file no. XCFR2.E62806 (investigated to CSA 22.2 No. 158)
• CE compliant - UL investigated to IEC 60947-7-1, file no. XCHG2.E243117, IEC 60947-7-1
• UL investigated to SANS 1804-2
• RoHS compliant
