3/8" Sectional Terminal Blocks

6G38 TS KK F Sectional Terminal Block

6G38 TS KK F

Specifications
  • 600 Volts AC/DC
  • 32 circuits per foot
  • Meets IP20 touchproof requirement
  • UL recognized file no. XCFR2.E62806
  • CSA certified file no. LR19766
  • CE Compliant
  • RoHS compliant

6G38 TS - Tubular Screw Connector

Materials
  • Base - grey thermoplastic, 125°C (UL RTI)
  • Tubular screw connector - copper, tin plated
  • Screw - #10-32 steel, nickel plated
  • Wire termination torque 16 in-lb
Wire Ranges
  • 50 amps (40 amps CSA)
  • Single and multiple wire combinations:
      Stranded CU
    • (1) #8-#18 AWG
    • (1-3) #12 AWG
    • (1-4) #14 AWG
      Solid CU
    • (1) #10 - #16 AWG
    • (1-3) #12 AWG
    • (1-4) #14 or #16 AWG
Catalog # Description Std Pack Reference Datasheet
6G38 TS F Flat mount block Std pk 100 See Figure 2 Datasheet
6G38 TS C Channel mount block Std pk 100 See Figure 1 Datasheet
6G38 TS DIN DIN mount block Std pk 25 See Figure 3 Datasheet

6G38 TSKK - Tubular Screw Connector

Materials
  • Base - grey thermoplastic, 125°C (UL RTI)
  • Kant Kut connector - copper, tin plated
  • Screw - #10-32, nickel plated, pad - steel
  • Wire termination torque 16 in-lb
Wire Ranges
  • 40 amps
  • Single and multiple wire combinations:
      Stranded CU
    • (1) #10-#22 AWG
    • (1-2) #12 AWG
    • (1-3) #14 AWG
    • (1-4) #16 AWG
    • (1-5) #18 or #22 AWG
      Solid CU
    • (1) #10 - #14 AWG
    • (1-2) #12 or #14 AWG
Catalog # Description Std Pack Reference Datasheet
6G38 TSKK F Flat mount block Std pk 100 See Figure 2 Datasheet
6G38 TSKK C Channel mount block Std pk 100 See Figure 1 Datasheet
6G38 TSKK DIN DIN mount block Std pk 25 See Figure 3 Datasheet

Sectional Terminal Block Accessories

Catalog # Description Std Pack
J 38 Jumper for TS and TSKK 50
MC Mounting Clamp (For channel style only) 25
MS 2 Vinyl Marking Strip (1/2" x 2' white) 25
MN35-2 DIN Rail, 35 x 7.5 mm
2 m long, slotted
25
Catalog # Description Std Pack

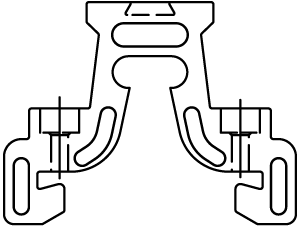

MSK35 End bracket for DIN mount base 25
6G38 E C
6G38 E F
6G38 E DIN
End bracket for 6G38 versions 25
MPC-3 (3 ft channel)
MPC-6 (6 ft channel)
Channel 1

Figure 1 : Channel Mount

Figure 2 : Flat Mount

Figure 3 : DIN Mount
