Fuse Holder Selector Tool

FILTERS

Fuse Class

Amps

Volts

Product Style

Poles

Wire Connector Style

Mouse over each item for image

Bare Wire Range

Clear Filters

Fuse Class Amps Volts Product Style Poles Wire Connector Style Bare Wire Range Catalog #
J Class 30 600 Enclosed 1 Box #1 - #18 6SJ30A1IC
Product image for 6SJ30A1IC
  • Catalog #: 6SJ30A1IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 1.37" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Enclosed 2 Box #1 - #18 6SJ30A2IC
Product image for 6SJ30A2IC
  • Catalog #: 6SJ30A2IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 2.75" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Enclosed 3 Box #1 - #18 6SJ30A3IC
Product image for 6SJ30A3IC
  • Catalog #: 6SJ30A3IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 4.13" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 Box #6 - #14 R6J30A1B
Product image for R6J30A1B
  • Catalog #: R6J30A1B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 Screw #10 - #22 R6J30A1S
Product image for R6J30A1S
  • Catalog #: R6J30A1S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 SEMS Screw #10 - #14 R6J30A1SP
Product image for R6J30A1SP
  • Catalog #: R6J30A1SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 Box #6 - #14 R6J30A2B
Product image for R6J30A2B
  • Catalog #: R6J30A2B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 Screw #10 - #22 R6J30A2S
Product image for R6J30A2S
  • Catalog #: R6J30A2S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 SEMS Screw #10 - #14 R6J30A2SP
Product image for R6J30A2SP
  • Catalog #: R6J30A2SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 Box #6 - #14 R6J30A3B
Product image for R6J30A3B
  • Catalog #: R6J30A3B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 Screw #10 - #22 R6J30A3S
Product image for R6J30A3S
  • Catalog #: R6J30A3S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 SEMS Screw #10 - #14 R6J30A3SP
Product image for R6J30A3SP
  • Catalog #: R6J30A3SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 60 600 Open 1 Box #2 - #14 R6J60A1B
Product image for R6J60A1B
  • Catalog #: R6J60A1B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    4.07" x 1.66" x 2.08"
  • Amps: 60
  • Weight: 0.30 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ660
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #14
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 60 600 Open 2 Box #2 - #14 R6J60A2B
Product image for R6J60A2B
  • Catalog #: R6J60A2B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    4.07" x 3.20" x 2.08"
  • Amps: 60
  • Weight: 0.56 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ660
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #14
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 60 600 Open 3 Box #2 - #14 R6J60A3B
Product image for R6J60A3B
  • Catalog #: R6J60A3B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    4.07" x 4.71" x 2.08"
  • Amps: 60
  • Weight: 0.79 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ660
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #14
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 60 600 Enclosed 3 Box #1 - #18 6SJ60A3IC
Product image for 6SJ60A3IC
  • Catalog #: 6SJ60A3IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.5" x 4.67" x 2.81"
  • Amps: 60
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 100 600 Open 1 Box #2 - #14 R6J100A1B
Product image for R6J100A1B
  • Catalog #: R6J100A1B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    5.12" x 1.92" x 2.62"
  • Amps: 100
  • Weight: 0.61 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 100 600 Open 3 Box #2 - #14 R6J100A3B
Product image for R6J100A3B
  • Catalog #: R6J100A3B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    5.12" x 5.36" x 2.62"
  • Amps: 100
  • Weight: 1.62 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Open 1 Box 250 kcmil - #6 M6J200A1101
Product image for M6J200A1101
  • Catalog #: M6J200A1101
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.4" x 2.34" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock

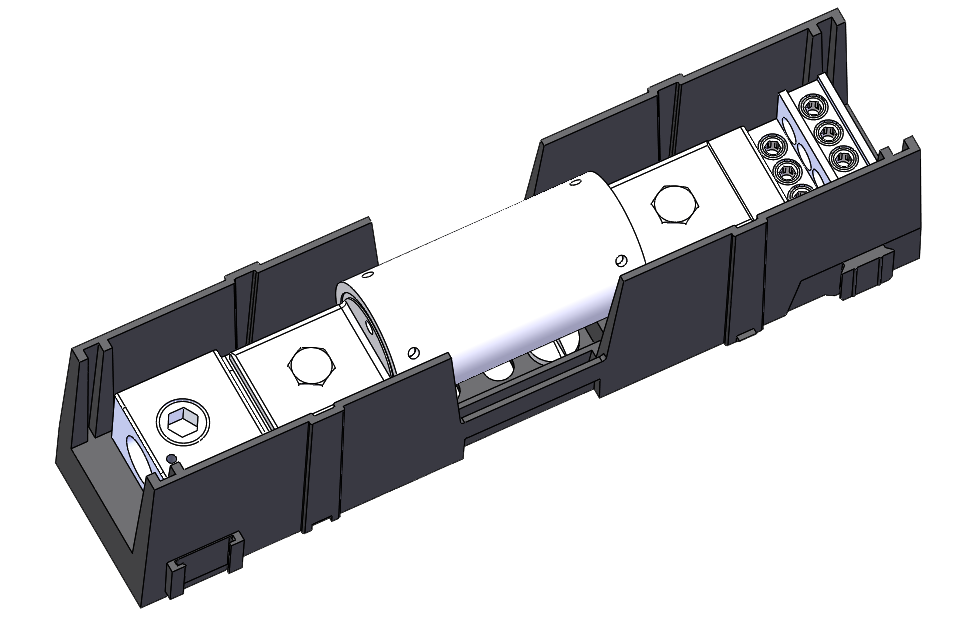

J Class 200 600 Fused Distribution Block 1 Box (6-out) #2 - 14 M6J200A1106
Product image for M6J200A1106
  • Catalog #: M6J200A1106
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Fused Distribution Block
  • Length x Width x Depth:
    9.4" x 2.34" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): (6-out) #2 - 14
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Open 3 Box 250 kcmil - #6 M6J200A3101
Product image for M6J200A3101
  • Catalog #: M6J200A3101
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.4" x 6.81" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Fused Distribution Block 3 Box (6-out) #2 - 14 M6J200A3106
Product image for M6J200A3106
  • Catalog #: M6J200A3106
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Fused Distribution Block
  • Length x Width x Depth:
    9.4" x 6.81" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): (6-out) #2 - 14
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 400 600 Open 1 Box (1) 350 kcmil - #2 (1) & 400kcmil - #2 6J400A1BFBD
Product image for 6J400A1BFBD
  • Catalog #: 6J400A1BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11" x 3.5" x 3.12"
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (1) 350 kcmil - #2 (1) & 400kcmil - #2
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (1) 350 kcmil - #6 & (1) 600kcmil - #2
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 400 600 Open 3 Box (1) 350 kcmil - #2 (1) & 400kcmil - #2 6J400A3BFBD
Product image for 6J400A3BFBD
  • Catalog #: 6J400A3BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11" x 9" x 3.12"
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (1) 350 kcmil - #2 (1) & 400kcmil - #2
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (1) 350 kcmil - #6 & (1) 600kcmil - #2
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 600 600 Open 1 Box (2) 500 kcmil - #4 6J600A1BFBD
Product image for 6J600A1BFBD
  • Catalog #: 6J600A1BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11.75" x 4" x 3.62"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 500 kcmil - #4
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (2) 500 kcmil - #4
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 600 600 Open 3 Box (2) 500 kcmil - #4 6J600A3BFBD
Product image for 6J600A3BFBD
  • Catalog #: 6J600A3BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11.75" x 12" x 3.62"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 500 kcmil - #4
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (2) 500 kcmil - #4
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
