Fuse Holders

FILTERS

Fuse Class

Amps

Volts

Product Style

Poles

Wire Connector Style

Mouse over each item for image

Bare Wire Range

Fuse Class Amps Volts Product Style Poles Wire Connector Style Bare Wire Range Catalog #
H Class 30 250 Open 1 SEMS Screw #10 - #14 RF30A1SP
Product image for RF30A1SP
  • Catalog #: RF30A1SP
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.12" x 1.37"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 2 Box #6 - #14 RF30A2B
Product image for RF30A2B
  • Catalog #: RF30A2B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 2 Box #6 - #14 RF30A2BCU
Product image for RF30A2BCU
  • Catalog #: RF30A2BCU
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 2 Screw #10 - #22 RF30A2S
Product image for RF30A2S
  • Catalog #: RF30A2S
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 10KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 2 SEMS Screw #10 - #14 RF30A2SP
Product image for RF30A2SP
  • Catalog #: RF30A2SP
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.179999 lbs.
  • Poles: 2
  • SC Withstand: 10KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 3 Box #6 - #14 RF30A3B
Product image for RF30A3B
  • Catalog #: RF30A3B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 2.95" x 1.37"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 3 Box #6 - #14 RF30A3BCU
Product image for RF30A3BCU
  • Catalog #: RF30A3BCU
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 2.95" x 1.37"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 3 Screw #10 - #22 RF30A3S
Product image for RF30A3S
  • Catalog #: RF30A3S
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 2.95" x 1.37"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 30 250 Open 3 SEMS Screw #10 - #14 RF30A3SP
Product image for RF30A3SP
  • Catalog #: RF30A3SP
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 2.95" x 1.37"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 Box #6 - #14 R6J30A1B
Product image for R6J30A1B
  • Catalog #: R6J30A1B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 Screw #10 - #22 R6J30A1S
Product image for R6J30A1S
  • Catalog #: R6J30A1S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 1 SEMS Screw #10 - #14 R6J30A1SP
Product image for R6J30A1SP
  • Catalog #: R6J30A1SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 1.15" x 1.95"
  • Amps: 30
  • Weight: 0.14 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 Box #6 - #14 R6J30A2B
Product image for R6J30A2B
  • Catalog #: R6J30A2B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 Screw #10 - #22 R6J30A2S
Product image for R6J30A2S
  • Catalog #: R6J30A2S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 2 SEMS Screw #10 - #14 R6J30A2SP
Product image for R6J30A2SP
  • Catalog #: R6J30A2SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 2.21" x 1.95"
  • Amps: 30
  • Weight: 0.26 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 Box #6 - #14 R6J30A3B
Product image for R6J30A3B
  • Catalog #: R6J30A3B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 Screw #10 - #22 R6J30A3S
Product image for R6J30A3S
  • Catalog #: R6J30A3S
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Open 3 SEMS Screw #10 - #14 R6J30A3SP
Product image for R6J30A3SP
  • Catalog #: R6J30A3SP
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.37" x 3.25" x 1.95"
  • Amps: 30
  • Weight: 0.39 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CJ630
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Enclosed 1 Box #1 - #18 6SJ30A1IC
Product image for 6SJ30A1IC
  • Catalog #: 6SJ30A1IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 1.37" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Enclosed 2 Box #1 - #18 6SJ30A2IC
Product image for 6SJ30A2IC
  • Catalog #: 6SJ30A2IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 2.75" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 30 600 Enclosed 3 Box #1 - #18 6SJ30A3IC
Product image for 6SJ30A3IC
  • Catalog #: 6SJ30A3IC
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    4.25" x 4.13" x 2.50"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #1 - #18
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 1 Box #6 - #14 6M30A1B
Product image for 6M30A1B
  • Catalog #: 6M30A1B
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 0.84" x 1.29"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 1 Box #6 - #14 6M30A1BCU
Product image for 6M30A1BCU
  • Catalog #: 6M30A1BCU
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 0.84" x 1.29"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 1 SEMS Screw with Quick Connects #10 - #18 6M30A1SPQ
Product image for 6M30A1SPQ
  • Catalog #: 6M30A1SPQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 0.84" x 1.29"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw with Quick Connects
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #18
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 1 SEMS Screw #10 - #22 6M30A1SQ
Product image for 6M30A1SQ
  • Catalog #: 6M30A1SQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 0.84" x 1.29"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 2 Box #6 - #14 6M30A2B
Product image for 6M30A2B
  • Catalog #: 6M30A2B
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 1.60" x 1.29"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 2 Box #6 - #14 6M30A2BCU
Product image for 6M30A2BCU
  • Catalog #: 6M30A2BCU
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 1.60" x 1.29"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 2 SEMS Screw with Quick Connects #10 - #18 6M30A2SPQ
Product image for 6M30A2SPQ
  • Catalog #: 6M30A2SPQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 1.60" x 1.29"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw with Quick Connects
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #18
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 2 SEMS Screw #10 - #22 6M30A2SQ
Product image for 6M30A2SQ
  • Catalog #: 6M30A2SQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 1.60" x 1.29"
  • Amps: 30
  • Weight: 0.17 lbs.
  • Poles: 2
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 3 Box #6 - #14 6M30A3B
Product image for 6M30A3B
  • Catalog #: 6M30A3B
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 2.35" x 1.29"
  • Amps: 30
  • Weight: 0.23 lbs.
  • Poles: 3
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 3 Box #6 - #14 6M30A3BCU
Product image for 6M30A3BCU
  • Catalog #: 6M30A3BCU
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 2.35" x 1.29"
  • Amps: 30
  • Weight: 0.23 lbs.
  • Poles: 3
  • SC Withstand: 100KA
  • Wire Connector Style: Box
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 3 SEMS Screw with Quick Connects #10 - #18 6M30A3SPQ
Product image for 6M30A3SPQ
  • Catalog #: 6M30A3SPQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 2.35" x 1.29"
  • Amps: 30
  • Weight: 0.23 lbs.
  • Poles: 3
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw with Quick Connects
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #18
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Open 3 SEMS Screw #10 - #22 6M30A3SQ
Product image for 6M30A3SQ
  • Catalog #: 6M30A3SQ
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.12" x 2.35" x 1.29"
  • Amps: 30
  • Weight: 0.23 lbs.
  • Poles: 3
  • SC Withstand: 100KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CCM630
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 1 Box #6 - #18 6SM30A1C
Product image for 6SM30A1C
  • Catalog #: 6SM30A1C
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 0.68" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 1 Box #6 - #18 6SM30A1IC
Product image for 6SM30A1IC
  • Catalog #: 6SM30A1IC
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 0.68" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 2 Box #6 - #18 6SM30A2C
Product image for 6SM30A2C
  • Catalog #: 6SM30A2C
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 1.37" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 2
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 2 Box #6 - #18 6SM30A2IC
Product image for 6SM30A2IC
  • Catalog #: 6SM30A2IC
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 1.37" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 2
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 3 Box #6 - #18 6SM30A3C
Product image for 6SM30A3C
  • Catalog #: 6SM30A3C
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 2.06" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 3 Box #6 - #18 6SM30A3IC
Product image for 6SM30A3IC
  • Catalog #: 6SM30A3IC
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 2.06" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 4 Box #6 - #18 6SM30A4C
Product image for 6SM30A4C
  • Catalog #: 6SM30A4C
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 2.75" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 4
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Midget (M) Class 30 600 Enclosed 4 Box #6 - #18 6SM30A4IC
Product image for 6SM30A4IC
  • Catalog #: 6SM30A4IC
  • Volts: 600
  • Fuse Class: Midget (M) Class
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    3.16" x 2.75" x 2.43"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: 4
  • SC Withstand: 200KA at 600V & 23KA at 1000V
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #6 - #18
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
Photovoltaic 30 1000 Enclosed -- Box #10 - #14 PV10BW
Product image for PV10BW
  • Catalog #: PV10BW
  • Volts: 1000
  • Fuse Class: Photovoltaic
  • Insulator Material: Thermoplastic
  • Product Style: Enclosed
  • Length x Width x Depth:
    2.35" x 0.69" x 3.60"
  • Amps: 30
  • Weight: -- lbs.
  • Poles: --
  • SC Withstand: 30KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Recognized, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: China
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 1 Box #6 - #14 R30A1B
Product image for R30A1B
  • Catalog #: R30A1B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.12" x 1.37"
  • Amps: 30
  • Weight: 0.84 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR230
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 1 Box #6 - #14 R30A1BCU
Product image for R30A1BCU
  • Catalog #: R30A1BCU
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.12" x 1.37"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR231
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 1 Screw #10 - #22 R30A1S
Product image for R30A1S
  • Catalog #: R30A1S
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.12" x 1.37"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CHR232
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 1 SEMS Screw #10 - #14 R30A1SP
Product image for R30A1SP
  • Catalog #: R30A1SP
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.12" x 1.37"
  • Amps: 30
  • Weight: 8.99 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CHR233
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 2 Box #6 - #14 R30A2B
Product image for R30A2B
  • Catalog #: R30A2B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.19 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR234
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 2 Box #6 - #14 R30A2BCU
Product image for R30A2BCU
  • Catalog #: R30A2BCU
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.19 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR235
  • Bare Wire Range (CU): #6 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock

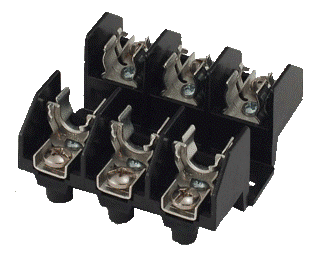

R Class 30 250 Open 2 Screw #10 - #22 R30A2S
Product image for R30A2S
  • Catalog #: R30A2S
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.19 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Screw
  • Available Cover Part #: CHR236
  • Bare Wire Range (CU): #10 - #22
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 30 250 Open 2 SEMS Screw #10 - #14 R30A2SP
Product image for R30A2SP
  • Catalog #: R30A2SP
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3" x 1.90" x 1.37"
  • Amps: 30
  • Weight: 0.19 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: SEMS Screw
  • Available Cover Part #: CHR237
  • Bare Wire Range (CU): #10 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
