Fuse Holder Selector Tool

FILTERS

Fuse Class

Amps

Volts

Product Style

Poles

Wire Connector Style

Mouse over each item for image

Bare Wire Range

Fuse Class Amps Volts Product Style Poles Wire Connector Style Bare Wire Range Catalog #
H Class 100 250 Open 1 Box 2/0 - #14 RF100A1B
Product image for RF100A1B
  • Catalog #: RF100A1B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 1.92" x 2.43"
  • Amps: 100
  • Weight: 0.79 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 100 250 Open 2 Box 2/0 - #14 RF100A2B
Product image for RF100A2B
  • Catalog #: RF100A2B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 3.49" x 2.43"
  • Amps: 100
  • Weight: 1.44 lbs.
  • Poles: 2
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 100 250 Open 3 Box 2/0 - #14 RF100A3B
Product image for RF100A3B
  • Catalog #: RF100A3B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 5.04" x 2.43"
  • Amps: 100
  • Weight: 1.79 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 100 600 Open 1 Box #2 - #14 R6J100A1B
Product image for R6J100A1B
  • Catalog #: R6J100A1B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    5.12" x 1.92" x 2.62"
  • Amps: 100
  • Weight: 0.61 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 100 600 Open 3 Box #2 - #14 R6J100A3B
Product image for R6J100A3B
  • Catalog #: R6J100A3B
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    5.12" x 5.36" x 2.62"
  • Amps: 100
  • Weight: 1.62 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): #2 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): #2 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 250 Open 1 Box 2/0 - #14 R100A1B
Product image for R100A1B
  • Catalog #: R100A1B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 1.92" x 2.43"
  • Amps: 100
  • Weight: 0.79 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 250 Open 2 Box 2/0 - #14 R100A2B
Product image for R100A2B
  • Catalog #: R100A2B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 3.49" x 2.43"
  • Amps: 100
  • Weight: 1.35 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 250 Open 3 Box 2/0 - #14 R100A3B
Product image for R100A3B
  • Catalog #: R100A3B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    6.12" x 5.04" x 2.43"
  • Amps: 100
  • Weight: 1.8 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR2100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 600 Open 1 Box 2/0 - #14 6R100A1B
Product image for 6R100A1B
  • Catalog #: 6R100A1B
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    8.13" x 2.10" x 2.60"
  • Amps: 100
  • Weight: 0.92 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR6100
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 600 Open 2 Box 2/0 - #14 6R100A2B
Product image for 6R100A2B
  • Catalog #: 6R100A2B
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    8.13" x 3.91" x 2.60"
  • Amps: 100
  • Weight: 1.55 lbs.
  • Poles: 2
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR6101
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 100 600 Open 3 Box 2/0 - #14 6R100A3B
Product image for 6R100A3B
  • Catalog #: 6R100A3B
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    8.13" x 5.73" x 2.60"
  • Amps: 100
  • Weight: 2.12 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CHR6102
  • Bare Wire Range (CU): 2/0 - #14
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 2/0 - #12
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 100 600 Open 1 Box 2/0 - #12 M6T100A1B
Product image for M6T100A1B
  • Catalog #: M6T100A1B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    6.05" x 1.37" x 1.87"
  • Amps: 100
  • Weight: 0.46 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CT6100/200M
  • Bare Wire Range (CU): 2/0 - #12
  • Agency Approvals: UL Listed, Canadian UL Recognized
  • Bare Wire Range (AL): 2/0 - #8
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 100 600 Open 3 Box 2/0 - #12 M6T100A3B
Product image for M6T100A3B
  • Catalog #: M6T100A3B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    6.05" x 4.12" x 1.87"
  • Amps: 100
  • Weight: 1.21 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CT6100/200M
  • Bare Wire Range (CU): 2/0 - #12
  • Agency Approvals: UL Listed, Canadian UL Recognized
  • Bare Wire Range (AL): 2/0 - #8
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 200 600 Open 1 Box 250kcmil - #6 F200A1BE
Product image for F200A1BE
  • Catalog #: F200A1BE
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 3" x 3.00"
  • Amps: 200
  • Weight: 1 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 200 600 Open 3 Box 250kcmil - #6 F200A3BE
Product image for F200A3BE
  • Catalog #: F200A3BE
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 9" x 3.00"
  • Amps: 200
  • Weight: 2.5 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 200 600 Open 1 Box 250kcmil - #6 6F200A1BE
Product image for 6F200A1BE
  • Catalog #: 6F200A1BE
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 3" x 3.00"
  • Amps: 200
  • Weight: 0.98 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 200 600 Open 3 Box 250kcmil - #6 6F200A3BE
Product image for 6F200A3BE
  • Catalog #: 6F200A3BE
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 9" x 3.00"
  • Amps: 200
  • Weight: 2.97 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Open 1 Box 250 kcmil - #6 M6J200A1101
Product image for M6J200A1101
  • Catalog #: M6J200A1101
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.4" x 2.34" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Fused Distribution Block 1 Box (6-out) #2 - 14 M6J200A1106
Product image for M6J200A1106
  • Catalog #: M6J200A1106
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Fused Distribution Block
  • Length x Width x Depth:
    9.4" x 2.34" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): (6-out) #2 - 14
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Open 3 Box 250 kcmil - #6 M6J200A3101
Product image for M6J200A3101
  • Catalog #: M6J200A3101
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    9.4" x 6.81" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 200 600 Fused Distribution Block 3 Box (6-out) #2 - 14 M6J200A3106

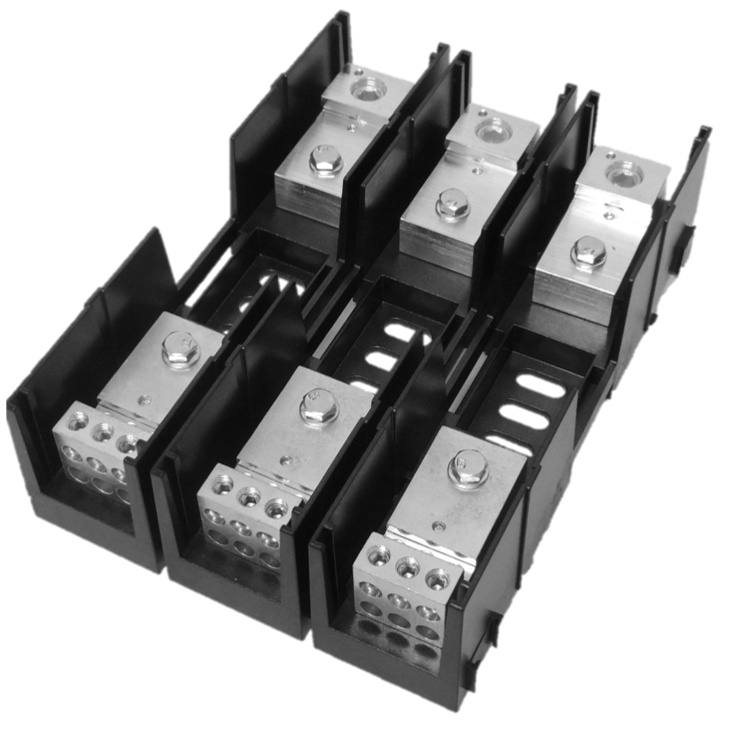

Product image for M6J200A3106
  • Catalog #: M6J200A3106
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Thermoplastic
  • Product Style: Fused Distribution Block
  • Length x Width x Depth:
    9.4" x 6.81" x 2.53"
  • Amps: 200
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CJ6200M
  • Bare Wire Range (CU): (6-out) #2 - 14
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 200 250 Open 1 Box 250kcmil - #6 R200A1BE
Product image for R200A1BE
  • Catalog #: R200A1BE
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    7.12" x 3" x 3.00"
  • Amps: 200
  • Weight: 0.84 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 200 250 Open 3 Box 250kcmil - #6 R200A3BE
Product image for R200A3BE
  • Catalog #: R200A3BE
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    7.12" x 9" x 3.00"
  • Amps: 200
  • Weight: 2.54 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 200 600 Open 1 Box 250kcmil - #6 6R200A1BE
Product image for 6R200A1BE
  • Catalog #: 6R200A1BE
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 3" x 3.00"
  • Amps: 200
  • Weight: 1.2 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 200 600 Open 3 Box 250kcmil - #6 6R200A3BE
Product image for 6R200A3BE
  • Catalog #: 6R200A3BE
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    9.63" x 9" x 3.00"
  • Amps: 200
  • Weight: 2.89 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 200 600 Open 1 Box 250kcmil - #6 M6T200A1B
Product image for M6T200A1B
  • Catalog #: M6T200A1B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    7.75" x 1.5" x 2.25"
  • Amps: 200
  • Weight: 0.76 lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CT6100/200M
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, Canadian UL Recognized
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 200 600 Open 3 Box 250kcmil - #6 M6T200A3B
Product image for M6T200A3B
  • Catalog #: M6T200A3B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    7.75" x 4.5" x 2.25"
  • Amps: 200
  • Weight: 2.27 lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: CT6100/200M
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Listed, Canadian UL Recognized
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 400 1000 Open 1 -Snap-On Bolted Connection -- FSM25E
Product image for FSM25E
  • Catalog #: FSM25E
  • Volts: 1000
  • Fuse Class: General Purpose
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    2.47" x 0.69" x 1.88"
  • Amps: 400
  • Weight: 8.00 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): --
  • Agency Approvals: UL Recognized, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 400 600 Open 1 -Snap-On Box 250kcmil - #6 1MS102
Product image for 1MS102
  • Catalog #: 1MS102
  • Volts: 600
  • Fuse Class: General Purpose
  • Insulator Material: --
  • Product Style: Open
  • Length x Width x Depth:
    3.79" x 2.52" x 2.25"
  • Amps: 400
  • Weight: 0.40 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 400 600 Open 1 -Snap-On Box 250kcmil - #6 1MS103
Product image for 1MS103
  • Catalog #: 1MS103
  • Volts: 600
  • Fuse Class: General Purpose
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    3.79" x 2.52" x 2.25"
  • Amps: 400
  • Weight: 0.52 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 250kcmil - #6
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): 250kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 400 600 Open 1 Box 350 kcmil - #1/0 R6F400A1B
Product image for R6F400A1B
  • Catalog #: R6F400A1B
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    14.5" x 3.5" x 3.31"
  • Amps: 400
  • Weight: 3.16 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 350 kcmil - #1/0
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 350 kcmil - #1/0
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 400 600 Open 3 Box 350 kcmil - #1/0 R6F400A3B
Product image for R6F400A3B
  • Catalog #: R6F400A3B
  • Volts: 600
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    14.5" x 10.5" x 3.31"
  • Amps: 400
  • Weight: 9.13 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 350 kcmil - #1/0
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 350 kcmil - #1/0
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 400 250 Open 1 Box 350kcmil - #6 RF400A1B

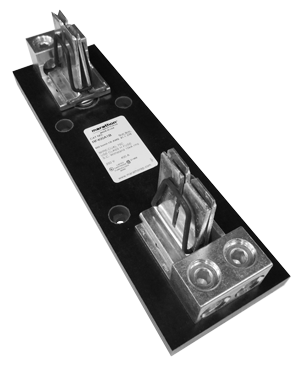

Product image for RF400A1B
  • Catalog #: RF400A1B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    11.5" x 3.5" x 3.31"
  • Amps: 400
  • Weight: 3.16 lbs.
  • Poles: 1
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 350kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 350kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
H Class 400 250 Open 3 Box 350kcmil - #6 RF400A3B
Product image for RF400A3B
  • Catalog #: RF400A3B
  • Volts: 250
  • Fuse Class: H Class
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    11.5" x 10.5" x 3.31"
  • Amps: 400
  • Weight: 9.48 lbs.
  • Poles: 3
  • SC Withstand: 10KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 350kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): 350kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 400 600 Open 1 Box (1) 350 kcmil - #2 (1) & 400kcmil - #2 6J400A1BFBD
Product image for 6J400A1BFBD
  • Catalog #: 6J400A1BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11" x 3.5" x 3.12"
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (1) 350 kcmil - #2 (1) & 400kcmil - #2
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (1) 350 kcmil - #6 & (1) 600kcmil - #2
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 400 600 Open 3 Box (1) 350 kcmil - #2 (1) & 400kcmil - #2 6J400A3BFBD
Product image for 6J400A3BFBD
  • Catalog #: 6J400A3BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11" x 9" x 3.12"
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (1) 350 kcmil - #2 (1) & 400kcmil - #2
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (1) 350 kcmil - #6 & (1) 600kcmil - #2
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 400 600 Open 1 Box (2) 350kcmil - 1/0 6R400A1B
Product image for 6R400A1B
  • Catalog #: 6R400A1B
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Amps: 400
  • Weight: 3.04 lbs.
  • Poles: 1
  • SC Withstand: --
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 350kcmil - 1/0
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): (2) 350kcmil - 1/0
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 400 600 Open 3 Box (2) 350kcmil - 1/0 6R400A3B
Product image for 6R400A3B
  • Catalog #: 6R400A3B
  • Volts: 600
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Amps: 400
  • Weight: 9.14 lbs.
  • Poles: 3
  • SC Withstand: --
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 350kcmil - 1/0
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): (2) 350kcmil - 1/0
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 400 250 Open 1 Box (2) 250 kcmil - #6 R400A1B
Product image for R400A1B
  • Catalog #: R400A1B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): (2) 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
R Class 400 250 Open 3 Box (2) 250 kcmil - #6 R400A3B
Product image for R400A3B
  • Catalog #: R400A3B
  • Volts: 250
  • Fuse Class: R Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Bare Wire Range (AL): (2) 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 400 600 Open 1 Box (2) 250 kcmil - #6 6T400A1B
Product image for 6T400A1B
  • Catalog #: 6T400A1B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    8.25" x 2.25" x 2.37"
  • Amps: 400
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 250 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): (2) 250 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 600 600 Open 1 -Snap-On Box 500kcmil - #6 1MS104
Product image for 1MS104
  • Catalog #: 1MS104
  • Volts: 600
  • Fuse Class: General Purpose
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    4.67" x 2.87" x 2.85"
  • Amps: 600
  • Weight: 1.12 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 500kcmil - #6
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Bare Wire Range (AL): 500kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 600 1500 Open 1 -Snap-On Bolted Connection 3/8" Stud MFH6153DD
Product image for MFH6153DD
  • Catalog #: MFH6153DD
  • Volts: 1500
  • Fuse Class: General Purpose
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.89" x 2.60" x 3.39"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 3/8" Stud
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): 3/8" Stud
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 600 600 Open 1 -Snap-On Bolted Connection 3/8" Stud MFH6153DD CH
Product image for MFH6153DD CH
  • Catalog #: MFH6153DD CH
  • Volts: 600
  • Fuse Class: General Purpose
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.89" x 2.60" x 3.39"
  • Amps: 600
  • Weight: 2.08 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 3/8" Stud
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): 3/8" Stud
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose (J, T & L) 600 600 Open 1 -Snap-On Bolted Connection 3/8" Stud MFH6063DD
Product image for MFH6063DD
  • Catalog #: MFH6063DD
  • Volts: 600
  • Fuse Class: General Purpose (J, T & L)
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.89" x 2.60" x 3.39"
  • Amps: 600
  • Weight: 0.201 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 3/8" Stud
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): 3/8" Stud
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose (J, T & L) 600 600 Open 1 -Snap-On Bolted Connection 3/8" Stud MFH6063DD CH
Product image for MFH6063DD CH
  • Catalog #: MFH6063DD CH
  • Volts: 600
  • Fuse Class: General Purpose (J, T & L)
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.89" x 2.60" x 3.39"
  • Amps: 600
  • Weight: 0.20 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): 3/8" Stud
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): 3/8" Stud
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 600 600 Open 1 Box (2) 500 kcmil - #4 6J600A1BFBD
Product image for 6J600A1BFBD
  • Catalog #: 6J600A1BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11.75" x 4" x 3.62"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 500 kcmil - #4
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (2) 500 kcmil - #4
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
J Class 600 600 Open 3 Box (2) 500 kcmil - #4 6J600A3BFBD
Product image for 6J600A3BFBD
  • Catalog #: 6J600A3BFBD
  • Volts: 600
  • Fuse Class: J Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    11.75" x 12" x 3.62"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 3
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 500 kcmil - #4
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Bare Wire Range (AL): (2) 500 kcmil - #4
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
T Class 600 600 Open 1 Box (2) 500 kcmil - #6 6T600A1B
Product image for 6T600A1B
  • Catalog #: 6T600A1B
  • Volts: 600
  • Fuse Class: T Class
  • Insulator Material: Phenolic
  • Product Style: Open
  • Length x Width x Depth:
    9.75" x 2.75" x 2.62"
  • Amps: 600
  • Weight: -- lbs.
  • Poles: 1
  • SC Withstand: 200KA
  • Wire Connector Style: Box
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): (2) 500 kcmil - #6
  • Agency Approvals: UL Listed, CSA Certified
  • Bare Wire Range (AL): (2) 500 kcmil - #6
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
General Purpose 800 1000 Open 1 -Snap-On Bolted Connection -- FSM37E
Product image for FSM37E
  • Catalog #: FSM37E
  • Volts: 1000
  • Fuse Class: General Purpose
  • Insulator Material: Thermoplastic
  • Product Style: Open
  • Length x Width x Depth:
    3.83" x 1" x 2.12"
  • Amps: 800
  • Weight: 0.23 lbs.
  • Poles: 1 -Snap-On
  • SC Withstand: 200KA
  • Wire Connector Style: Bolted Connection
  • Available Cover Part #: N/A
  • Bare Wire Range (CU): --
  • Agency Approvals: UL Recognized, CSA Certified
  • Bare Wire Range (AL): --
  • Country of Origin: USA
  • Downloads:
    Datasheet
    STEP File
  • Check Distributor Stock
