Power Distribution Block Selector Tool

FILTERS

Style

Poles

Amps

Select minimum amps

Volts

Select minimum volts

Line Side Connector Openings/Poles

Line Side Wire Range

Load Side Connector Openings/Poles

Load Side Wire Range

Connector Material

Insulator Material

Agency

Amps LINE SIDE LOAD SIDE Feeder Circuit Compliant per UL 508 Catalog #
Wire Range
AWG / kcmil		 Connector
Openings / Pole		 Wire Range
AWG / kcmil		 Connector
Openings / Pole
175 2/0 - #14 1 2/0 - #14 1 Yes 1323572
Product image for 1323572
  • Catalog #: 1323572
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: 2/0 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.4 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 Prepared Wire 1/4 - 20 stud 1 Yes 1323574
Product image for 1323574
  • Catalog #: 1323574
  • Available Cover Part #: CH1323
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.39 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 2/0 - #14 & (1) 1/4" Quick Connect 1 Yes 1323579
Product image for 1323579
  • Catalog #: 1323579
  • Available Cover Part #: CH1323
  • Style: Open Miscellaneous
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: 2/0 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.4 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 2/0 - #14 1 Yes 1323972
Product image for 1323972
  • Catalog #: 1323972
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: 2/0 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #12 1 #4 - #14 4 Yes 1323570
Product image for 1323570
  • Catalog #: 1323570
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #12
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.4 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #12 1 #4 - #14 4 Yes 1322570
Product image for 1322570
  • Catalog #: 1322570
  • Available Cover Part #: CH1322
  • Style: Open
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #12
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.28 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 & (1) 1/4" Quick Connect 4 Yes 1322670
Product image for 1322670
  • Catalog #: 1322670
  • Available Cover Part #: CH1322
  • Style: Open Miscellaneous
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #14
  • Load Side AL Wire Range: #4 - #14
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.24 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 4 Yes 1322970
Product image for 1322970
  • Catalog #: 1322970
  • Available Cover Part #: CH1322
  • Style: Open
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.52 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 & (1) 1/4" Quick Connect 4 Yes 1321670
Product image for 1321670
  • Catalog #: 1321670
  • Available Cover Part #: CH1321
  • Style: Open Miscellaneous
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #14
  • Load Side AL Wire Range: #4 - #14
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: .16 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 4 Yes 1321970
Product image for 1321970
  • Catalog #: 1321970
  • Available Cover Part #: CH1321
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.27 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #12 1 #4 - #14 4 Yes 1321570
Product image for 1321570
  • Catalog #: 1321570
  • Available Cover Part #: CH1321
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #12
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.16 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 & (1) 1/4" Quick Connect 4 -- 1323670
Product image for 1323670
  • Catalog #: 1323670
  • Available Cover Part #: CH1323
  • Style: Open Miscellaneous
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0 lbs.
  • Agency Approvals: CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 4 Yes 1323970
Product image for 1323970
  • Catalog #: 1323970
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.65 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 -- 1321580
Product image for 1321580
  • Catalog #: 1321580
  • Available Cover Part #: CH1321
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.17 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 -- 1322580
Product image for 1322580
  • Catalog #: 1322580
  • Available Cover Part #: CH1322
  • Style: Open
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.4 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 -- 1323580
Product image for 1323580
  • Catalog #: 1323580
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.5 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 Yes 1341580
Product image for 1341580
  • Catalog #: 1341580
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 Yes 1342580
Product image for 1342580
  • Catalog #: 1342580
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 #4 - #14 6 Yes 1343580
Product image for 1343580
  • Catalog #: 1343580
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 (6) #8 - #14 & (2) #4 - #14 8 -- 1323587
Product image for 1323587
  • Catalog #: 1323587
  • Available Cover Part #: CH1323
  • Style: Open
  • Poles: 3
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: (6) #8 - #14 & (2) #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.5 lbs.
  • Agency Approvals: UL Recognized
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 (6) #8 - #14 & (2) #4 - #14 8 -- 1322587
Product image for 1322587
  • Catalog #: 1322587
  • Available Cover Part #: CH1322
  • Style: Open
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: (6) #8 - #14 & (2) #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #14 1 (6) #8 - #14 & (2) #4 - #14 8 -- 1321587
Product image for 1321587
  • Catalog #: 1321587
  • Available Cover Part #: CH1321
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: 2/0 - #6
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 2/0 - #14
  • Load Side CU Wire Range: (6) #8 - #14 & (2) #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.2 lbs.
  • Agency Approvals: UL Recognized
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
175 2/0 - #6 1 (2) #4-#14 & (6) #8 - #10 AWG 8 Yes ZT3102
Product image for ZT3102
  • Catalog #: ZT3102
  • Available Cover Part #: N/A
  • Style: Push-In Load Terminals (ZT)
  • Poles: 2
  • Amps: 175
  • Volts: 600
  • Line Side AL Wire Range: #4 - #10
  • Load Side AL Wire Range: #8 - #14
  • Line Side CU Wire Range: --
  • Load Side CU Wire Range: --
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.83" x 5.42" x 3.07"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: China
  • Check Distributor Stock
200 Prepared Wire 1/4 - 20 stud 1 Prepared Wire 1/4 - 20 stud 1 Yes 1321122
Product image for 1321122
  • Catalog #: 1321122
  • Available Cover Part #: CH1321
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.18 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 Prepared Wire M6 Stud 1 Prepared Wire M6 Stud 1 Yes 1321422

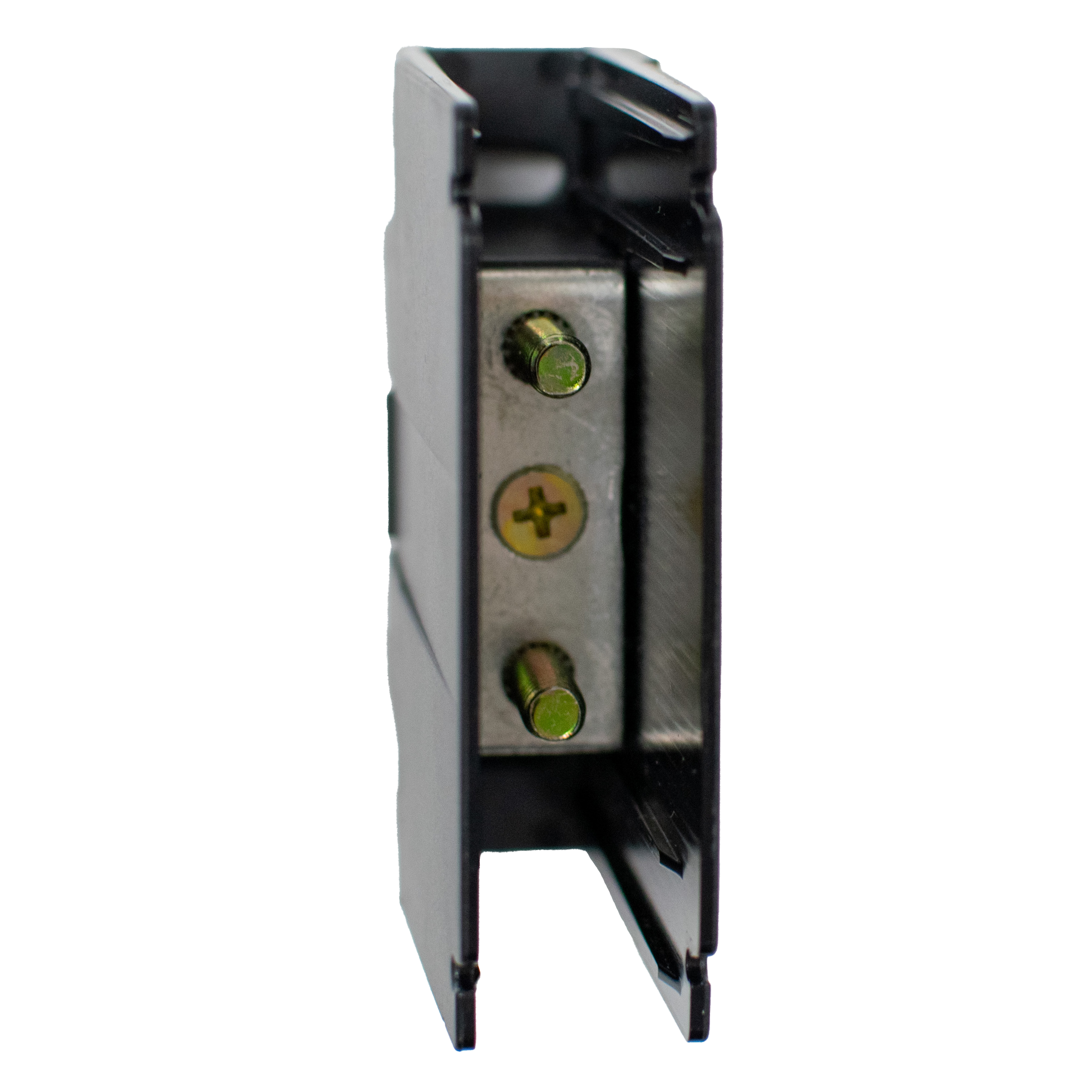

Product image for 1321422
  • Catalog #: 1321422
  • Available Cover Part #: CH1321
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1" x 3" x 2.42"
  • Weight: 0.19 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 Prepared Wire 1/4 - 20 stud 1 Prepared Wire 1/4 - 20 stud 1 Yes 1322122
Product image for 1322122
  • Catalog #: 1322122
  • Available Cover Part #: CH1322
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 Prepared Wire M6 Stud 1 Prepared Wire M6 Stud 1 Yes 1322422
Product image for 1322422
  • Catalog #: 1322422
  • Available Cover Part #: CH1322
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.82" x 3" x 2.42"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 Prepared Wire 1/4 - 20 stud 1 Prepared Wire 1/4 - 20 stud 1 Yes 1323122
Product image for 1323122
  • Catalog #: 1323122
  • Available Cover Part #: CH1323
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.49 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 Prepared Wire M6 Stud 1 Prepared Wire M6 Stud 1 Yes 1323422
Product image for 1323422
  • Catalog #: 1323422
  • Available Cover Part #: CH1323
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 3" x 2.42"
  • Weight: 0.47 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes 1342572
Product image for 1342572
  • Catalog #: 1342572
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: 3/0 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes 1343572
Product image for 1343572
  • Catalog #: 1343572
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: 3/0 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes 1341572
Product image for 1341572
  • Catalog #: 1341572
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: 3/0 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes EPBAD42
Product image for EPBAD42
  • Catalog #: EPBAD42
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: 3/0 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.79"
  • Weight: 0.34 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes EPBAP42
Product image for EPBAP42
  • Catalog #: EPBAP42
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: 3/0 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.71"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 #2 - #14 1 Yes EPBCD42
Product image for EPBCD42
  • Catalog #: EPBCD42
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.79"
  • Weight: 0.37 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 3/0 - #14 1 Yes EPBCP42
Product image for EPBCP42
  • Catalog #: EPBCP42
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 3/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.71"
  • Weight: 0.37 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 2 - #14 4 Yes EPBCP45
Product image for EPBCP45
  • Catalog #: EPBCP45
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.71"
  • Weight: 0.37 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 #2 - #14 4 Yes EPBCD45
Product image for EPBCD45
  • Catalog #: EPBCD45
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.79"
  • Weight: 0.57 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 2 - #14 4 Yes EPBAP45
Product image for EPBAP45
  • Catalog #: EPBAP45
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.71"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 2 - #14 4 Yes EPBAD45
Product image for EPBAD45
  • Catalog #: EPBAD45
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: 2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.79"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 #2 - #14 4 Yes 1341570
Product image for 1341570
  • Catalog #: 1341570
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #8
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 #2 - #14 4 Yes 1342570
Product image for 1342570
  • Catalog #: 1342570
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #8
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 #2 - #14 4 Yes 1343570
Product image for 1343570
  • Catalog #: 1343570
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #8
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 (2) #2 - #14 & (6) #6 - #14 8 Yes 1343548
Product image for 1343548
  • Catalog #: 1343548
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: (2) #2 - #14 & (6) #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 (2) #2 - #14 & (6) #6 - #14 8 Yes 1342548
Product image for 1342548
  • Catalog #: 1342548
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: (2) #2 - #14 & (6) #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 (2) #2 - #14 & (6) #6 - #14 8 Yes 1341548
Product image for 1341548
  • Catalog #: 1341548
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: (2) #2 - #14 & (6) #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 (2) #2 - #14 & (6) #6 - #14 8 Yes EPBAD48
Product image for EPBAD48
  • Catalog #: EPBAD48
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: (2) #2 - #14 & (6) #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.79"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
200 3/0 - #14 1 (2) #2 - #14 & (6) #6 - #14 8 Yes EPBAP48
Product image for EPBAP48
  • Catalog #: EPBAP48
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 200
  • Volts: 600
  • Line Side AL Wire Range: 3/0 - #6
  • Load Side AL Wire Range: #2 - #6
  • Line Side CU Wire Range: 3/0 - #14
  • Load Side CU Wire Range: (2) #2 - #14 & (6) #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.11" x 3.61" x 2.71"
  • Weight: 0.33 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
260 Prepared Wire 3/8 - 16 Stud 1 Prepared Wire 1/4 - 20 stud 2 -- 1441122
Product image for 1441122
  • Catalog #: 1441122
  • Available Cover Part #: CC1441
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 260
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Phenolic
  • Length x Width x Depth:
    2.28" x 4.75" x 2.91"
  • Weight: 0.98 lbs.
  • Agency Approvals: UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
260 Prepared Wire 3/8 - 16 Stud 1 Prepared Wire 1/4 - 20 stud 2 -- 1442122
Product image for 1442122
  • Catalog #: 1442122
  • Available Cover Part #: CC1442
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 260
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Phenolic
  • Length x Width x Depth:
    4.16" x 4.75" x 2.91"
  • Weight: 1.16 lbs.
  • Agency Approvals: UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
