Power Distribution Block Selector Tool

FILTERS

Style

Poles

Amps

Select minimum amps

Volts

Select minimum volts

Line Side Connector Openings/Poles

Line Side Wire Range

Load Side Connector Openings/Poles

Load Side Wire Range

Connector Material

Insulator Material

Agency

Amps LINE SIDE LOAD SIDE Feeder Circuit Compliant per UL 508 Catalog #
Wire Range
AWG / kcmil		 Connector
Openings / Pole		 Wire Range
AWG / kcmil		 Connector
Openings / Pole
510 Prepared Wire 3/8 Stud 1 2/0 - #14 4 -- 1333270
Product image for 1333270
  • Catalog #: 1333270
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 1.67 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 2/0 - #14 4 -- 1333271
Product image for 1333271
  • Catalog #: 1333271
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 2/0 - #14 4 -- 1331270
Product image for 1331270
  • Catalog #: 1331270
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0.56 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 2/0 - #14 4 -- 1331271
Product image for 1331271
  • Catalog #: 1331271
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #2 - #14 8 -- 1333281
Product image for 1333281
  • Catalog #: 1333281
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #2 - #14 8 -- 1332281
Product image for 1332281
  • Catalog #: 1332281
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 1.18 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #2 - #14 8 -- 1331281
Product image for 1331281
  • Catalog #: 1331281
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0.6 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #4 - #14 12 -- 1332272
Product image for 1332272
  • Catalog #: 1332272
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #4 - #14 12 -- 1332273
Product image for 1332273
  • Catalog #: 1332273
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #4 - #14 12 -- 1333272
Product image for 1333272
  • Catalog #: 1333272
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #4 - #14 12 -- 1333273
Product image for 1333273
  • Catalog #: 1333273
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #4 - #14 12 -- 1331272
Product image for 1331272
  • Catalog #: 1331272
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 #4 - #14 12 -- 1331273
Product image for 1331273
  • Catalog #: 1331273
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 250 - #6 2 -- EPBCP71
Product image for EPBCP71
  • Catalog #: EPBCP71
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.27" x 4.39" x 3.14"
  • Weight: 2.1 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 250 - #6 2 -- EPBCD71
Product image for EPBCD71
  • Catalog #: EPBCD71
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.27" x 4.61" x 3.14"
  • Weight: 2.14 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 250 - #6 2 -- EPBAP71
Product image for EPBAP71
  • Catalog #: EPBAP71
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: 250 - #6
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.27" x 4.39" x 3.14"
  • Weight: 0.94 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 250 - #6 2 -- EPBAD71
Product image for EPBAD71
  • Catalog #: EPBAD71
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: 250 - #6
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.27" x 4.61" x 3.14"
  • Weight: 0.94 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #2 - #14 8 Yes 1343597
Product image for 1343597
  • Catalog #: 1343597
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #2 - #14
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #2 - #14 8 Yes 1342597
Product image for 1342597
  • Catalog #: 1342597
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #2 - #14
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #2 - #14 8 Yes 1341597

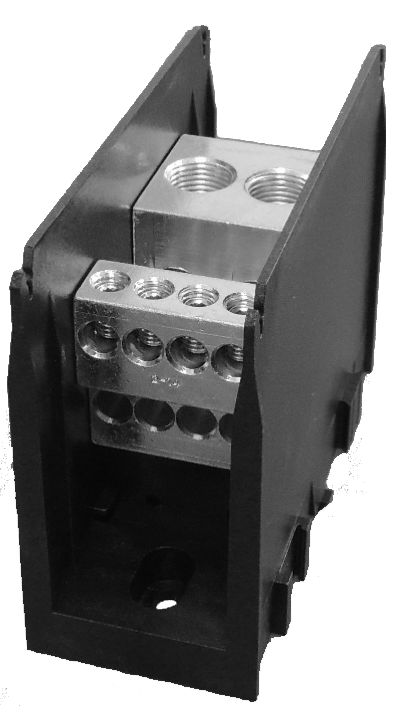

Product image for 1341597
  • Catalog #: 1341597
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #2 - #14
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #4 - #14 12 Yes 1342596
Product image for 1342596
  • Catalog #: 1342596
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #4 - #14 12 Yes 1341596
Product image for 1341596
  • Catalog #: 1341596
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 250 - #6 2 #4 - #14 12 Yes 1343596
Product image for 1343596
  • Catalog #: 1343596
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: 250 - #6
  • Load Side AL Wire Range: #4 - #8
  • Line Side CU Wire Range: 250 - #6
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.16 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 350 - #6 2 Yes 1343350
Product image for 1343350
  • Catalog #: 1343350
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: 350 - #6
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 350 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 350 - #6 2 Yes 1341350
Product image for 1341350
  • Catalog #: 1341350
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: 350 - #6
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 350 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 350 - #6 2 Yes 1342350
Product image for 1342350
  • Catalog #: 1342350
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: 350 - #6
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 350 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 2/0 - #14 6 Yes 1342526
Product image for 1342526
  • Catalog #: 1342526
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 2/0 - #14 6 Yes 1341526
Product image for 1341526
  • Catalog #: 1341526
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 2/0 - #14 6 Yes 1343526
Product image for 1343526
  • Catalog #: 1343526
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
620 350 - #6 2 #8 - #14 48 -- 1331348
Product image for 1331348
  • Catalog #: 1331348
  • Available Cover Part #: CH1331
  • Style: Open
  • Poles: 1
  • Amps: 620
  • Volts: 600
  • Line Side AL Wire Range: 350 - #6
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 350 - #6
  • Load Side CU Wire Range: #8 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
750 Prepared Wire 3/8 Stud 1 Prepared Wire 3/8 Stud 1 -- HVPB112
Product image for HVPB112
  • Catalog #: HVPB112
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 750
  • Volts: 1500
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 1.16 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
750 Prepared Wire 1/2 Stud 1 Prepared Wire 1/2 Stud 1 -- HVPB114
Product image for HVPB114
  • Catalog #: HVPB114
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 750
  • Volts: 1500
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 1.34 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 1 Prepared Wire 3/8 - 16 Stud 2 Yes 1453599
Product image for 1453599
  • Catalog #: 1453599
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 1 Prepared Wire 3/8 - 16 Stud 2 Yes 1452599

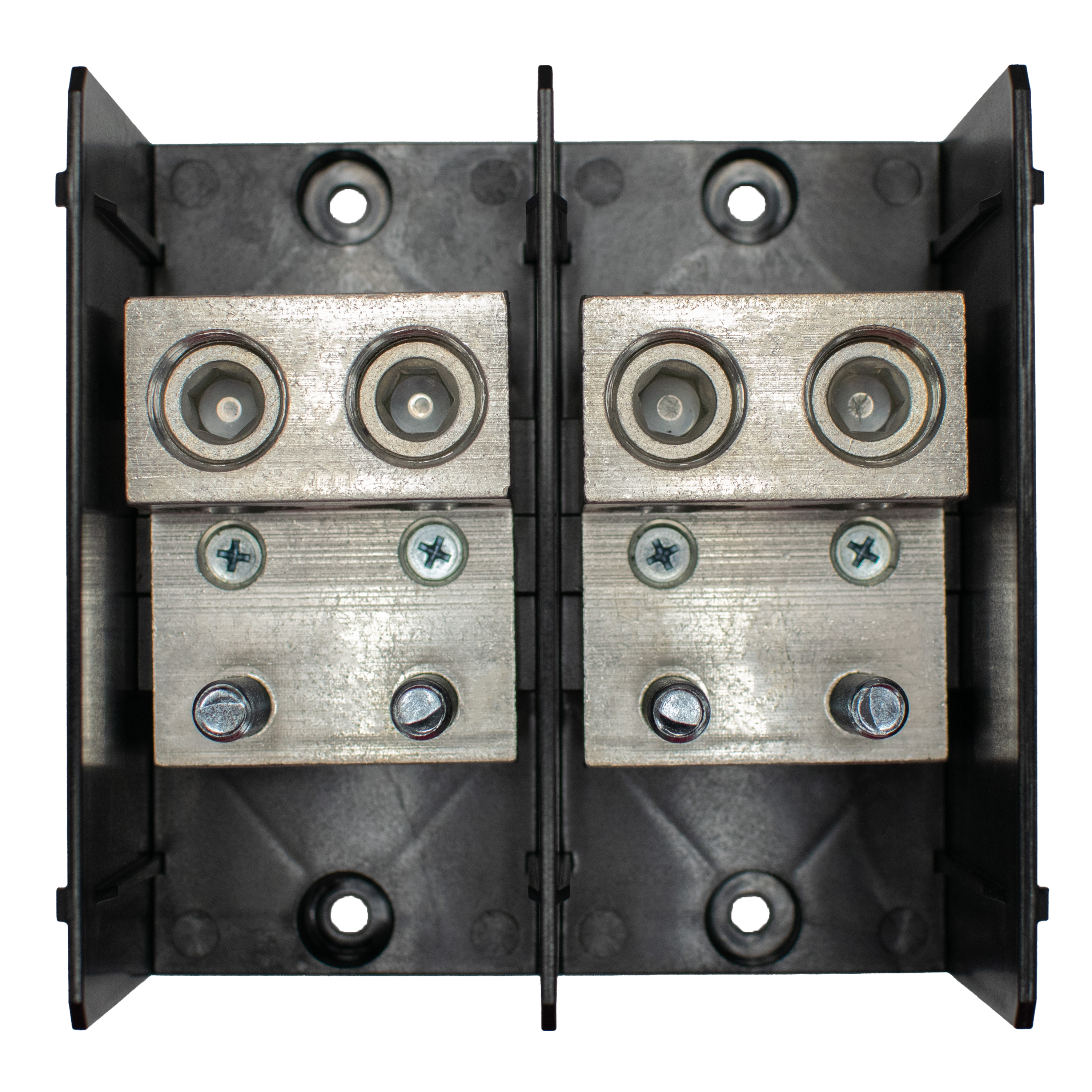

Product image for 1452599
  • Catalog #: 1452599
  • Available Cover Part #: CC1452
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 2.62 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 1 Prepared Wire 3/8 - 16 Stud 2 Yes 1451599
Product image for 1451599
  • Catalog #: 1451599
  • Available Cover Part #: CC1451
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 1.83 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 1 #2 - #12 12 -- HVPB210
Product image for HVPB210
  • Catalog #: HVPB210
  • Available Cover Part #: CH1332
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 760
  • Volts: 1500
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #12
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.75" x 4.48" x 3.76"
  • Weight: 1.05 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 Prepared Wire 1/2 - 13 Stud 1 Yes 1452610
Product image for 1452610
  • Catalog #: 1452610
  • Available Cover Part #: CC1452
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 3.9 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 Prepared Wire 1/2 - 13 Stud 1 Yes 1453610
Product image for 1453610
  • Catalog #: 1453610
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 3.83 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 Prepared Wire 1/2 - 13 Stud 1 Yes 1451610
Product image for 1451610
  • Catalog #: 1451610
  • Available Cover Part #: CC1451
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 0 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 500 - #4 2 Yes 1451301
Product image for 1451301
  • Catalog #: 1451301
  • Available Cover Part #: CC1451
  • Style: Open
  • Poles: 1
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 500 - #4
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 500 - #4
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 1.58 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 500 - #4 2 Yes 1452301
Product image for 1452301
  • Catalog #: 1452301
  • Available Cover Part #: CC1452
  • Style: Open
  • Poles: 2
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 500 - #4
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 500 - #4
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 2.76 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 500 - #4 2 Yes 1453301
Product image for 1453301
  • Catalog #: 1453301
  • Available Cover Part #: CC1453
  • Style: Open
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 500 - #4
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 500 - #4
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #2 2 500 - #2 2 Yes EPBAP81
Product image for EPBAP81
  • Catalog #: EPBAP81
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 500 - #4
  • Line Side CU Wire Range: 500 - #2
  • Load Side CU Wire Range: 500 - #2
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 4.63" x 3.35"
  • Weight: 2.1 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #2 2 2/0 - #14 8 Yes EPBAP84
Product image for EPBAP84
  • Catalog #: EPBAP84
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 2/0 - #12
  • Line Side CU Wire Range: 500 - #2
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 4.63" x 3.35"
  • Weight: 2.1 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 2/0 - #14 8 -- HVPB211
Product image for HVPB211
  • Catalog #: HVPB211
  • Available Cover Part #: CH1332
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 760
  • Volts: 1500
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.75" x 4.48" x 3.76"
  • Weight: 0.99 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 2/0 - #14 8 Yes EPBCP84
Product image for EPBCP84
  • Catalog #: EPBCP84
  • Available Cover Part #: N/A
  • Style: Enclosed ( Modular Snap-Together )
  • Poles: 1 - Snap-on
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: 2/0 - #12
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.54" x 4.63" x 3.35"
  • Weight: 2.1 lbs.
  • Agency Approvals: UL Listed, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 2/0 - #14 8 Yes 1452986
Product image for 1452986
  • Catalog #: 1452986
  • Available Cover Part #: CC1452
  • Style: Open
  • Poles: 2
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 0 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 Prepared Wire 3/8 - 16 Stud 2 2/0 - #14 8 Yes 1453282
Product image for 1453282
  • Catalog #: 1453282
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 3.74 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #6 2 2/0 - #14 8 Yes 1453586
Product image for 1453586
  • Catalog #: 1453586
  • Available Cover Part #: CC1453
  • Style: Open
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #6
  • Load Side AL Wire Range: 2/0 - #12
  • Line Side CU Wire Range: 500 - #6
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 4.07 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
760 500 - #4 2 2/0 - #14 8 Yes 1453986
Product image for 1453986
  • Catalog #: 1453986
  • Available Cover Part #: CC1453
  • Style: Open
  • Poles: 3
  • Amps: 760
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: 2/0 - #14
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
