Power Distribution Block Selector Tool

FILTERS

Style

Poles

Amps

Select minimum amps

Volts

Select minimum volts

Line Side Connector Openings/Poles

Line Side Wire Range

Load Side Connector Openings/Poles

Load Side Wire Range

Connector Material

Insulator Material

Agency

Amps LINE SIDE LOAD SIDE Feeder Circuit Compliant per UL 508 Catalog #
Wire Range
AWG / kcmil		 Connector
Openings / Pole		 Wire Range
AWG / kcmil		 Connector
Openings / Pole
380 500 - #4 1 (3) #2 - #14 & (1) 350 -#6 4 -- 1332587
Product image for 1332587
  • Catalog #: 1332587
  • Available Cover Part #: CH1332
  • Style: Open
  • Poles: 2
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: (3) #2 - #14 & (1) 350 -#6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 6 Yes 1341953
Product image for 1341953
  • Catalog #: 1341953
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 6 Yes 1343953
Product image for 1343953
  • Catalog #: 1343953
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 6 Yes 1342953
Product image for 1342953
  • Catalog #: 1342953
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 12 Yes 1451552
Product image for 1451552
  • Catalog #: 1451552
  • Available Cover Part #: CC1451
  • Style: Open
  • Poles: 1
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 1.66 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 12 Yes 1452552
Product image for 1452552
  • Catalog #: 1452552
  • Available Cover Part #: CC1452
  • Style: Open
  • Poles: 2
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: #2 - #14
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 3 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
380 500 - #4 1 #2 - #14 12 Yes 1453552
Product image for 1453552
  • Catalog #: 1453552
  • Available Cover Part #: CC1453
  • Style: Open
  • Poles: 3
  • Amps: 380
  • Volts: 600
  • Line Side AL Wire Range: 500 - #4
  • Load Side AL Wire Range: #2 - #14
  • Line Side CU Wire Range: 500 - #4
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 Yes 1452606
Product image for 1452606
  • Catalog #: 1452606
  • Available Cover Part #: CC1452
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 2.77 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 Yes 1453606
Product image for 1453606
  • Catalog #: 1453606
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 Yes 1451606
Product image for 1451606
  • Catalog #: 1451606
  • Available Cover Part #: CC1451
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 1.66 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 -- 1333611
Product image for 1333611
  • Catalog #: 1333611
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 2.44 lbs.
  • Agency Approvals: UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 -- 1332611
Product image for 1332611
  • Catalog #: 1332611
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 2.08 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
410 Prepared Wire 1/2 - 13 Stud 1 Prepared Wire 1/2 - 13 Stud 1 -- 1331611
Product image for 1331611
  • Catalog #: 1331611
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 410
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0.81 lbs.
  • Agency Approvals: UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 600 - #2 1 Yes 1341360
Product image for 1341360
  • Catalog #: 1341360
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 600 - #2
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 600 - #2
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 600 - #2 1 Yes 1342360
Product image for 1342360
  • Catalog #: 1342360
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 600 - #2
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 600 - #2
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 600 - #2 1 Yes 1343360
Product image for 1343360
  • Catalog #: 1343360
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 600 - #2
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 600 - #2
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 600 - #2 1 -- HVPB109
Product image for HVPB109
  • Catalog #: HVPB109
  • Available Cover Part #: CH1331
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 1500
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 600 - #2
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 600 - #2
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 0.05 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 250 - #6 2 -- 1331565
Product image for 1331565
  • Catalog #: 1331565
  • Available Cover Part #: CH1331
  • Style: Open
  • Poles: 1
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 250 - #6
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 250 - #6 2 -- 1332565
Product image for 1332565
  • Catalog #: 1332565
  • Available Cover Part #: CH1332
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 250 - #6
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 1.63 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 250 - #6 2 -- 1333565
Product image for 1333565
  • Catalog #: 1333565
  • Available Cover Part #: CH1333
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: 250 - #6
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 250 - #6
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 2.45 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 2/0 - #14 6 Yes 1343516
Product image for 1343516
  • Catalog #: 1343516
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 2/0 - #14 6 Yes 1342516
Product image for 1342516
  • Catalog #: 1342516
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 2/0 - #14 6 Yes 1341516
Product image for 1341516
  • Catalog #: 1341516
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #2 - #14 8 Yes 1341585
Product image for 1341585
  • Catalog #: 1341585
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #2 - #14 8 Yes 1342585
Product image for 1342585
  • Catalog #: 1342585
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #2 - #14 8 Yes 1343585
Product image for 1343585
  • Catalog #: 1343585
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #2 - #8
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 (3) 1/0 - #14 & (6) #2 - #14 9 Yes 1343588
Product image for 1343588
  • Catalog #: 1343588
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 (3) 1/0 - #14 & (6) #2 - #14 9 Yes 1342588
Product image for 1342588
  • Catalog #: 1342588
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 (3) 1/0 - #14 & (6) #2 - #14 9 Yes 1341588
Product image for 1341588
  • Catalog #: 1341588
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: (3) 1/0 - #14 & (6) #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 12 Yes 1341595
Product image for 1341595
  • Catalog #: 1341595
  • Available Cover Part #: CH1341
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #4 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.17" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 12 Yes 1342595
Product image for 1342595
  • Catalog #: 1342595
  • Available Cover Part #: CH1341 (2X)
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #4 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    4.24" x 5" x 3.92"
  • Weight: -- lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 12 Yes 1343595
Product image for 1343595
  • Catalog #: 1343595
  • Available Cover Part #: CH1343
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #4 - #14
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.64" x 5" x 3.92"
  • Weight: 2.73 lbs.
  • Agency Approvals: UL Listed, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 12 -- HVPB108

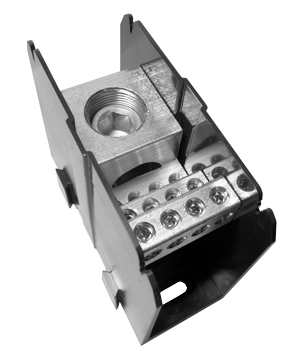

Product image for HVPB108
  • Catalog #: HVPB108
  • Available Cover Part #: CH1331
  • Style: Open
  • Poles: 1 - Snap-on
  • Amps: 420
  • Volts: 1500
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 24 -- 1351601

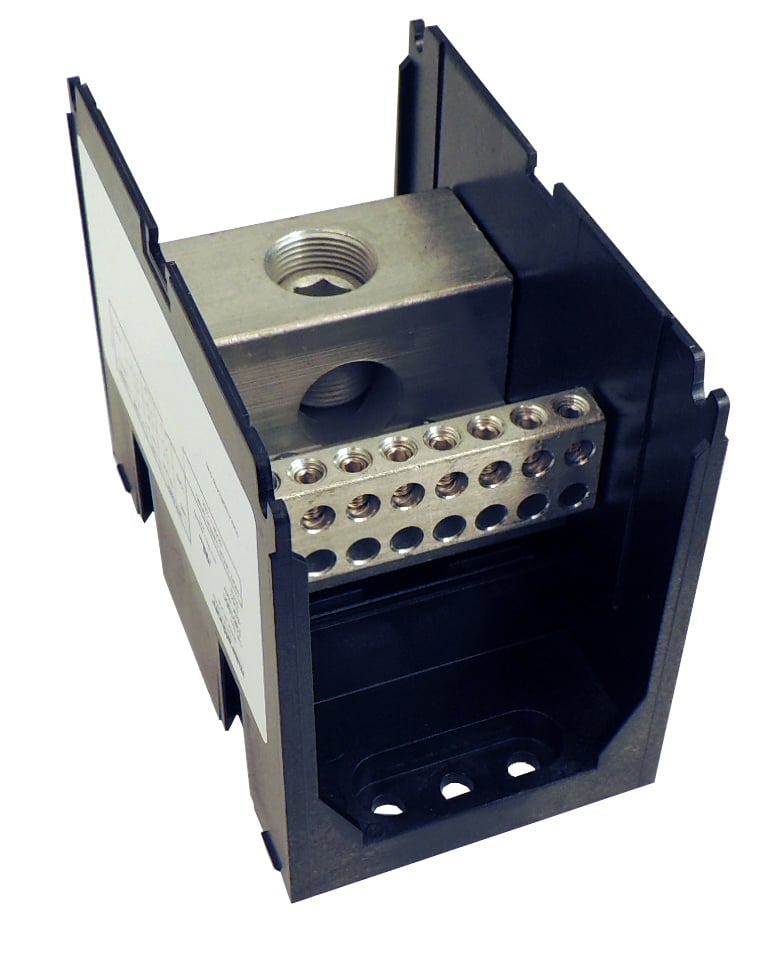

Product image for 1351601
  • Catalog #: 1351601
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 1
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.46" x 4.5" x 5.73"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 24 -- 1352601
Product image for 1352601
  • Catalog #: 1352601
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 2
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    6.77" x 4.5" x 5.73"
  • Weight: 3.63 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
420 600 - #2 1 #4 - #14 24 -- 1353601
Product image for 1353601
  • Catalog #: 1353601
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 3
  • Amps: 420
  • Volts: 600
  • Line Side AL Wire Range: 600 - #2
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 600 - #2
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    10.08" x 4.5" x 5.73"
  • Weight: 2.53 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
430 Prepared Wire M10 Stud 1 Prepared Wire M10 Stud 1 -- HVPB107
Product image for HVPB107
  • Catalog #: HVPB107
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 430
  • Volts: 1500
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 0.77 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
430 Prepared Wire M10 Stud 1 #4 - #14 8 -- HVPB103
Product image for HVPB103
  • Catalog #: HVPB103
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 430
  • Volts: 1500
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #4 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 0.64 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
430 Prepared Wire M10 Stud 1 #6 - #14 12 -- HVPB101
Product image for HVPB101
  • Catalog #: HVPB101
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1 - Snap-on
  • Amps: 430
  • Volts: 1500
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #4 - #6
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #6 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    2.09" x 4.5" x 3.76"
  • Weight: 0.64 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 750 - 1/0 1 750 - 1/0 1 Yes 1353701
Product image for 1353701
  • Catalog #: 1353701
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 3
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: 750 - 1/0
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 750 - 1/0
  • Load Side CU Wire Range: 750 - 1/0
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    10.08" x 4.5" x 5.73"
  • Weight: 5.27 lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 750 - 1/0 1 750 - 1/0 1 Yes 1352701
Product image for 1352701
  • Catalog #: 1352701
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 2
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: 750 - 1/0
  • Load Side AL Wire Range: 750 - 1/0
  • Line Side CU Wire Range: 750 - 1/0
  • Load Side CU Wire Range: 750 - 1/0
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    6.77" x 4.5" x 5.73"
  • Weight: 3.63 lbs.
  • Agency Approvals: UL Listed
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 750 - 1/0 1 750 - 1/0 1 Yes 1351701
Product image for 1351701
  • Catalog #: 1351701
  • Available Cover Part #: CH1351
  • Style: Open
  • Poles: 1
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: 750 - 1/0
  • Load Side AL Wire Range: 750 - 1/0
  • Line Side CU Wire Range: 750 - 1/0
  • Load Side CU Wire Range: 750 - 1/0
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.46" x 4.5" x 5.73"
  • Weight: 2.2 lbs.
  • Agency Approvals: UL Listed, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 Prepared Wire 3/8 - 16 Stud 2 Prepared Wire 3/8 - 16 Stud 1 Yes 1451613
Product image for 1451613
  • Catalog #: 1451613
  • Available Cover Part #: CC1451
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 0 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 Prepared Wire 3/8 - 16 Stud 2 Prepared Wire 3/8 - 16 Stud 1 Yes 1453613
Product image for 1453613
  • Catalog #: 1453613
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 0 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
475 Prepared Wire 3/8 - 16 Stud 2 Prepared Wire 3/8 - 16 Stud 1 Yes 1452613
Product image for 1452613
  • Catalog #: 1452613
  • Available Cover Part #: CC1452
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 475
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 3.14 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #2 - #14 1 -- 1333280
Product image for 1333280
  • Catalog #: 1333280
  • Available Cover Part #: CH1333
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.36" x 4" x 3.33"
  • Weight: 1.74 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #2 - #14 1 -- 1331280
Product image for 1331280
  • Catalog #: 1331280
  • Available Cover Part #: CH1331
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    1.96" x 4" x 3.33"
  • Weight: 0.59 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 #2 - #14 1 -- 1332280
Product image for 1332280
  • Catalog #: 1332280
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: #2 - #12
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: #2 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire 3/8 Stud 1 2/0 - #14 4 -- 1332270
Product image for 1332270
  • Catalog #: 1332270
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
510 Prepared Wire M10 Stud 1 2/0 - #14 4 -- 1332271
Product image for 1332271
  • Catalog #: 1332271
  • Available Cover Part #: CH1332
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 510
  • Volts: 600
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: 2/0 - #8
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.66" x 4" x 3.33"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
