Power Distribution Block Selector Tool

FILTERS

Style

Poles

Amps

Select minimum amps

Volts

Select minimum volts

Line Side Connector Openings/Poles

Line Side Wire Range

Load Side Connector Openings/Poles

Load Side Wire Range

Connector Material

Insulator Material

Agency

Amps LINE SIDE LOAD SIDE Feeder Circuit Compliant per UL 508 Catalog #
Wire Range
AWG / kcmil		 Connector
Openings / Pole		 Wire Range
AWG / kcmil		 Connector
Openings / Pole
1605 Prepared Wire/Flexibar for 3/8 Studs 4 Prepared Wire/Flexibar for 3/8 Studs 4 -- BFPB3714
Product image for BFPB3714
  • Catalog #: BFPB3714
  • Available Cover Part #: CC BFPB-1-4
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    9.89" x 6.89" x 4.99"
  • Weight: 5.73 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1605 Prepared Wire/Flexibar for 1/2 Studs 4 Prepared Wire/Flexibar for 1/2 Studs 4 -- BFPB5024

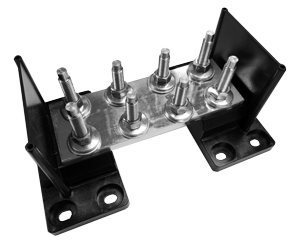

Product image for BFPB5024
  • Catalog #: BFPB5024
  • Available Cover Part #: CC-BFPB-2-4
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    11.39" x 6.89" x 4.99"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1605 Prepared Wire/Flexibar for 1/2 Studs 5 Prepared Wire/Flexibar for 1/2 Studs 5 -- BFPB5025
Product image for BFPB5025
  • Catalog #: BFPB5025
  • Available Cover Part #: CC-BFPB-2-5
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    13.52" x 6.89" x 4.99"
  • Weight: 8.89 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1605 Prepared Wire/Flexibar for 3/8 Studs 5 Prepared Wire/Flexibar for 3/8 Studs 5 -- BFPB3715
Product image for BFPB3715
  • Catalog #: BFPB3715
  • Available Cover Part #: CC BFPB-1-5
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    11.52" x 6.89" x 4.99"
  • Weight: 0 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1605 Prepared Wire/Flexibar for 3/8 Studs 6 Prepared Wire/Flexibar for 3/8 Studs 6 -- BFPB3716
Product image for BFPB3716
  • Catalog #: BFPB3716
  • Available Cover Part #: CC BFPB-1-6
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    13.14" x 6.89" x 4.99"
  • Weight: 10.6 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1605 Prepared Wire/Flexibar for 1/2 Studs 6 Prepared Wire/Flexibar for 1/2 Studs 6 -- BFPB5026
Product image for BFPB5026
  • Catalog #: BFPB5026
  • Available Cover Part #: CC-BFPB-2-6
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1605
  • Volts: 1000
  • Line Side AL Wire Range: Prepared Wire
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: Prepared Wire
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: CU
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    15.64" x 6.89" x 4.99"
  • Weight: 10.6 lbs.
  • Agency Approvals: UL Recognized, Canadian UL Recognized, CSA Certified
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1680 600 - #4 4 Prepared Wire 1/2 - 13 Stud 1 -- 1453615
Product image for 1453615
  • Catalog #: 1453615
  • Available Cover Part #: CC1453
  • Style: Open w/ Stud(s)
  • Poles: 3
  • Amps: 1680
  • Volts: 600
  • Line Side AL Wire Range: 600 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 600 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1680 600 - #4 4 Prepared Wire 1/2 - 13 Stud 1 -- 1452615
Product image for 1452615
  • Catalog #: 1452615
  • Available Cover Part #: CC1452
  • Style: Open w/ Stud(s)
  • Poles: 2
  • Amps: 1680
  • Volts: 600
  • Line Side AL Wire Range: 600 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 600 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    5.88" x 5.5" x 3.13"
  • Weight: 3.62 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
1680 600 - #4 4 Prepared Wire 1/2 - 13 Stud 1 -- 1451615
Product image for 1451615
  • Catalog #: 1451615
  • Available Cover Part #: CC1451
  • Style: Open w/ Stud(s)
  • Poles: 1
  • Amps: 1680
  • Volts: 600
  • Line Side AL Wire Range: 600 - #4
  • Load Side AL Wire Range: Prepared Wire
  • Line Side CU Wire Range: 600 - #4
  • Load Side CU Wire Range: Prepared Wire
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    3.17" x 5.5" x 3.13"
  • Weight: 1.99 lbs.
  • Agency Approvals: UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
2280 500 - #6 6 2/0 - #14 18 Yes 1453401
Product image for 1453401
  • Catalog #: 1453401
  • Available Cover Part #: CC1453
  • Style: Open
  • Poles: 3
  • Amps: 2280
  • Volts: 600
  • Line Side AL Wire Range: --
  • Load Side AL Wire Range: --
  • Line Side CU Wire Range: 500 - #6
  • Load Side CU Wire Range: 2/0 - #14
  • Connector Material: AL
  • Insulator Material: Thermoplastic
  • Length x Width x Depth:
    8.54" x 5.5" x 3.13"
  • Weight: 5.44 lbs.
  • Agency Approvals: UL Listed, Canadian UL Recognized, CSA Certified, CE Compliant
  • Downloads:
    Datasheet
    STEP File
    RoHS
  • Country of Origin: USA
  • Check Distributor Stock
